LYFOOCRANE MEASURED-MOTION WINCHES

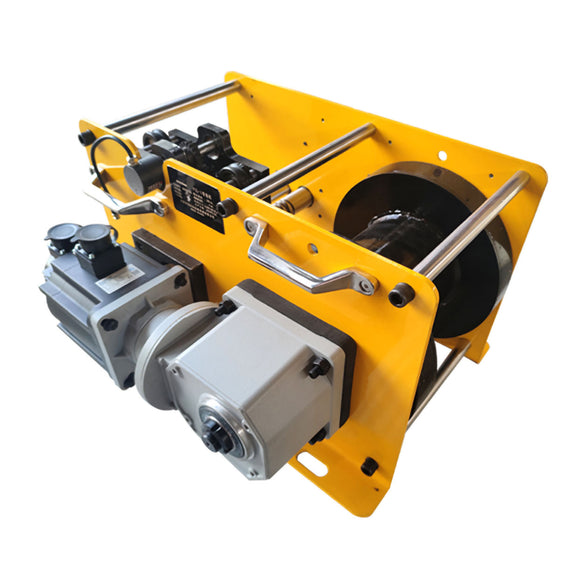

Servo Winch with Meter-Counter Encoder and Screw Level Wind
A long-rope servo winch that combines measured drum movement with programmable controls and guided winding.
Measured Travel for Automated Equipment
The encoder supplies movement feedback that can be used by a PLC for length indication, speed monitoring and position-based stopping. A screw-type rope guide traverses across the drum to manage long rope lengths. Actual linear accuracy depends on drum diameter, rope layers, slip, calibration and feedback location.
Measured speed and distance signals.
Digital length and sequence control.
Orderly multilayer winding support.
Right-angle motor arrangement.
120 kg Reference Model
| Rated Pull | Motor | Rope | Rope Length | Drum Speed | Average Rope Speed |
|---|---|---|---|---|---|
| 120 kg | 0.85 kW | Ø4 mm | 230 m | 37.5 rpm | 22.15 m/min |
| Length | Width | Height |
|---|---|---|
| 500 mm | 550 mm | 350 mm |
Applications
Automated warehousing · stage machinery · assembly positioning · test equipment · long-distance cable handling
The meter counter should be calibrated over the actual rope-layer range. It does not by itself prove millimeter-level load positioning, and all lifting configurations require suitable brakes, travel limits and overload protection.
Define the Measurement Requirement
Send LYFOOCRANE the usable travel, required measurement tolerance, speed, rope layering, PLC protocol and operating environment.
