CDM Series Commercial HVLS Fan

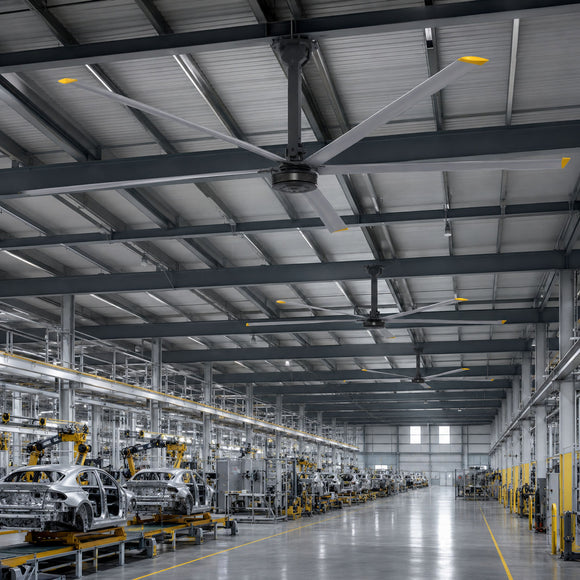

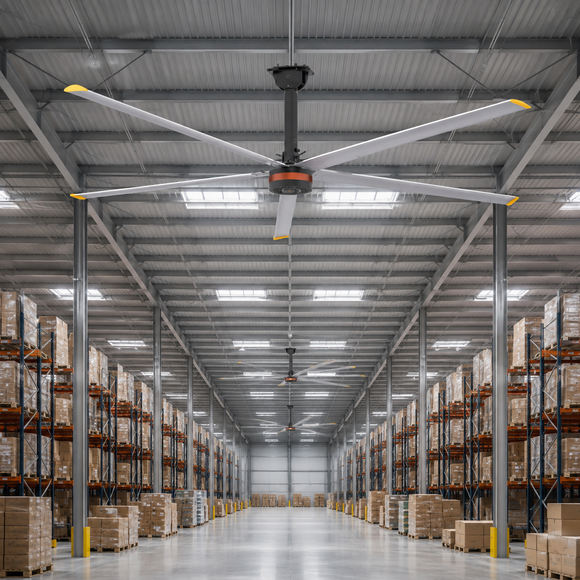

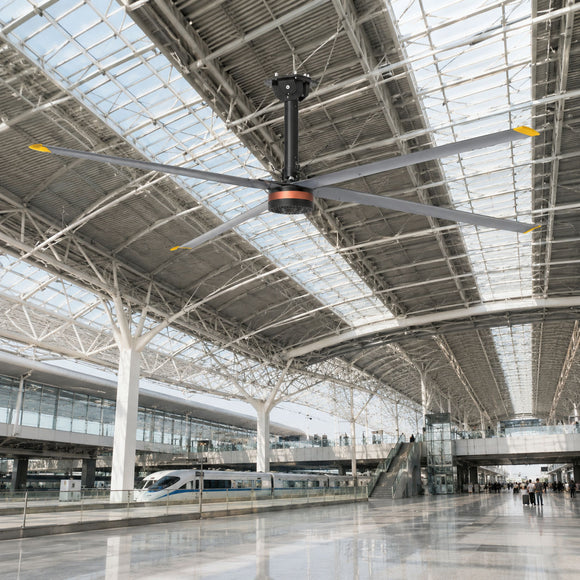

The CDM Series commercial HVLS fan uses a permanent-magnet motor and aerodynamic fan blades to deliver high-volume, low-speed air circulation. It is suitable for commercial spaces, public areas, warehouses, workshops and other large indoor environments.
Technical Specifications
| Model | Diameter | Blades | Weight | Voltage | Power | Speed | Airflow | Coverage |
|---|---|---|---|---|---|---|---|---|
| CDM-7300 | 7.3m | 5 | 61kg | 220V/380V | 1.1kW | 50 RPM | 14,300m³/min | 1,300m² |
| CDM-6100 | 6.1m | 5 | 57kg | 220V/380V | 1.1kW | 65 RPM | 12,200m³/min | 1,150m² |
| CDM-5500 | 5.5m | 5 | 54kg | 220V/380V | 0.75kW | 75 RPM | 9,600m³/min | 700m² |
| CDM-4800 | 4.8m | 5 | 48kg | 220V/380V | 0.75kW | 90 RPM | 8,850m³/min | 600m² |
| CDM-3600 | 3.6m | 5 | 45kg | 220V | 0.5kW | 100 RPM | 7,500m³/min | 400m² |
| CDM-3000 | 3.0m | 5 | 41kg | 220V | 0.5kW | 120 RPM | 6,350m³/min | 300m² |
| CDM-2500 | 2.5m | 5 | 37kg | 220V | 0.37kW | 150 RPM | 5,200m³/min | 250m² |
| CDM-2000 | 2.0m | 5 | 35kg | 220V | 0.37kW | 180 RPM | 4,350m³/min | 200m² |
Key Features
- High-efficiency permanent-magnet motor
- Five aerodynamic aluminum-alloy fan blades
- Adjustable operating speed
- High-volume, low-speed air circulation
- Low-noise and energy-efficient operation
- Suitable for commercial and industrial environments
Specification Notice:
Specifications may vary according to voltage, configuration and installation
requirements. Please confirm the final technical details before ordering.
