Industrial Ultrasonic Cleaning System

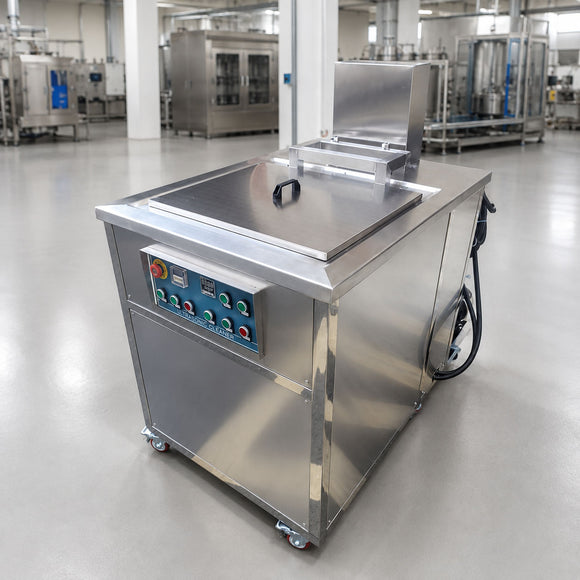

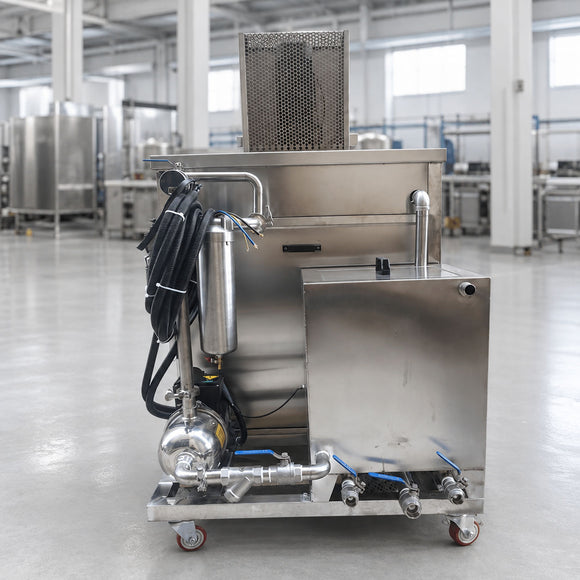

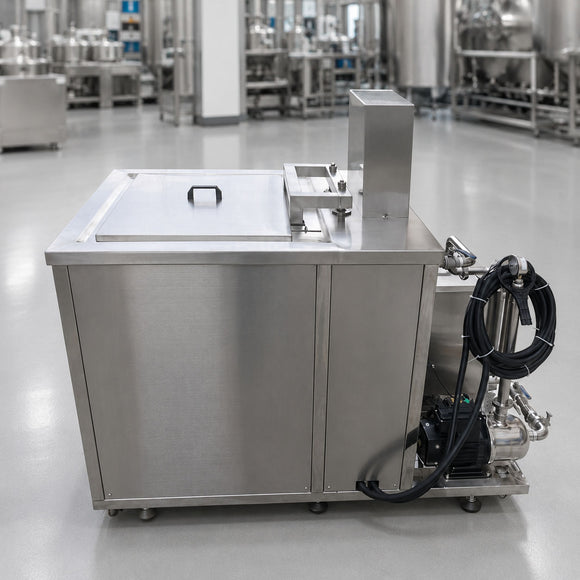

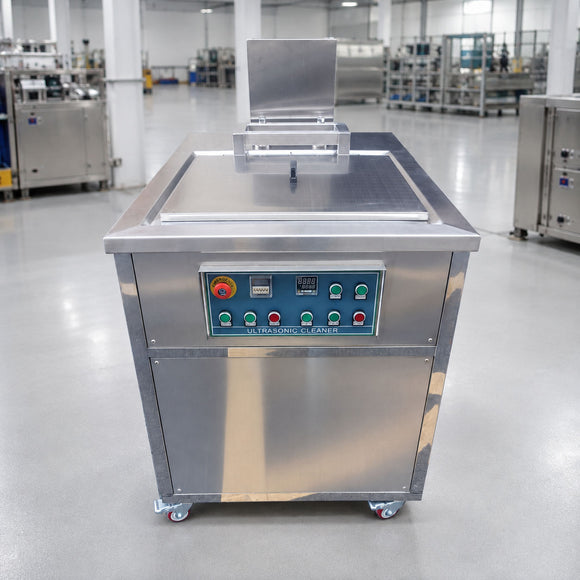

Z-360SJ 135L Industrial Ultrasonic Cleaner
A high-capacity ultrasonic cleaning system equipped with 36 industrial ultrasonic transducers. It combines ultrasonic cleaning, filtration, and powered lifting in one unit, with adjustable time, temperature, and power settings.
Product Specifications
| Model | Z-360SJ |
|---|---|
| Tank Capacity | 135 L |
| Ultrasonic Transducers | 36 industrial transducers |
| Internal Tank Dimensions | 60 × 50 × 45 cm |
| Rated Ultrasonic Power | 1,800 W |
| Rated Heating Power | 4,500 W |
| Ultrasonic Frequency | 28 kHz (contact us for a 40 kHz version) |
| Timer Range | 0–99 minutes |
| Temperature Range | Ambient temperature to 80°C |
| Maximum Load Capacity | 100 kg |
| Power Supply | 380 V |
Integrated Functions
- Ultrasonic cleaning for efficient removal of oil, residue, and contaminants.
- Filtration system for continuous circulation and improved cleaning-fluid performance.
- Powered lifting function for convenient handling of heavy workpieces.
- Adjustable controls for cleaning time, temperature, and ultrasonic power.
Included Accessories
- Degreasing powder: 1 kg × 3 packs

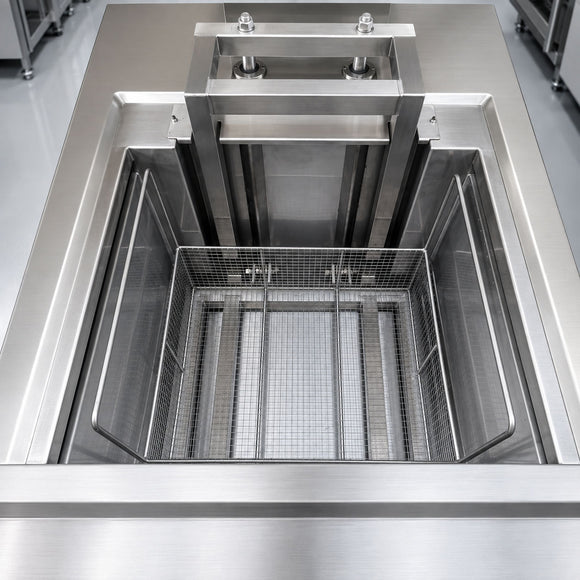

- Cleaning basket: 1 piece
Please confirm the required voltage and ultrasonic frequency before ordering. Product appearance may vary slightly depending on the production batch.
