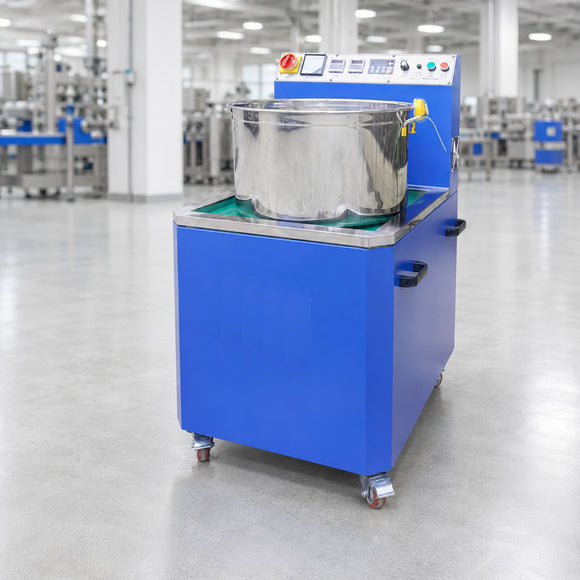

DY-C500DZ Magnetic Polishing Machine
The DY-C500DZ magnetic polishing machine is designed for deburring, edge rounding, polishing and cleaning small metal parts. Its variable-frequency speed control allows the operating speed to be adjusted for different workpieces and finishing requirements.
Technical Specifications
| Model | DY-C500DZ |
|---|---|
| Voltage | 220V / 50Hz |
| Motor Power | 2.2kW |
| Variable-Frequency Drive | 2.2kW |
| Machine Dimensions | 830 × 700 × 1110mm (L × W × H) |
| Timer | DELIXI |
Included Accessories
- Magnetic Stainless Steel Needles: 6kg
- 500mm Stainless Steel Polishing Barrels: 2 pcs
- Grinding and Polishing Compound: 25kg
Key Features
- Multiple Finishing Processes: Performs deburring, edge smoothing, polishing, cleaning, processing-mark removal and edge rounding in a single operation.
- Timed Bidirectional Rotation: Supports timed processing, completion alerts and automatic clockwise and counterclockwise rotation for convenient operation.
- Gentle on Workpieces: When the appropriate processing parameters are used, the machine helps reduce deformation and surface damage while maintaining dimensional accuracy.
- Variable-Speed Control: The polishing speed can be adjusted to accommodate different materials, workpiece shapes and surface-finishing requirements.
- Low Consumable Costs: Magnetic stainless steel needles are reusable, long-lasting polishing media that help reduce routine operating costs.
- Efficient Batch Processing: Multiple small workpieces can be processed simultaneously, improving production efficiency and finish consistency.
- Digital Monitoring: Voltage, current, frequency and processing time can be digitally displayed and monitored.
- Energy-Efficient Operation: Variable-frequency control allows the machine to operate according to actual processing requirements, helping reduce unnecessary energy consumption.
- Powerful Magnetic Field: The optimized magnetic-field layout drives the polishing needles in rapid, multidirectional motion for effective finishing of complex and hard-to-reach areas.
Applications
Suitable for precision surface finishing of small parts made from stainless steel, copper, aluminum and other non-magnetic metals. Typical applications include hardware components, CNC-machined parts, jewelry components, medical-device parts, electronic components, screws, gears and other complex-shaped workpieces.
Important Notice:
Actual processing results and energy consumption may vary depending on the workpiece
material, loading quantity, needle size, compound concentration, operating speed and
processing time. Testing and parameter adjustments are recommended for each application.
