304 Stainless Steel Industrial Ovens
150°C Electric Heating Ovens
Available in double-door and single-door configurations, these forced-air industrial ovens feature adjustable temperature control, durable 304 stainless steel construction, thermal insulation, and integrated electrical safety protection.

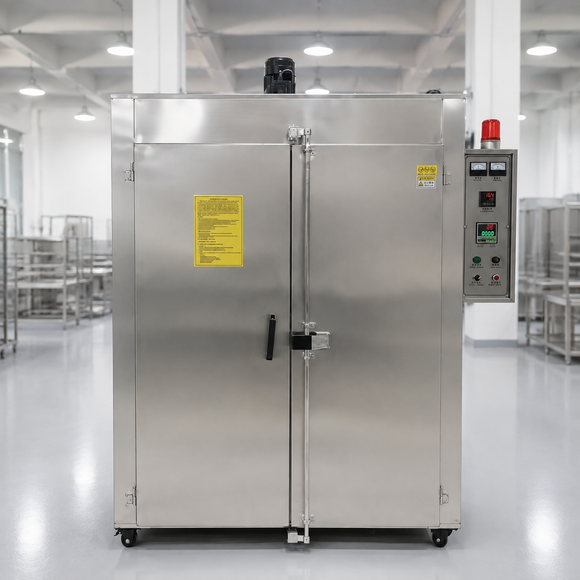

Double-Door 150°C Oven
| Door Configuration | Double door |
|---|---|
| Internal Dimensions (H × W × D) | 1550 × 1200 × 800 mm |
| External Dimensions (H × W × D) | 2200 × 2000 × 1100 mm |
| Maximum Temperature | 150°C, adjustable |
| Total Power | 12 kW |
| Heat-Up Time | 30-40 minutes from empty/cold to 150°C |
| Temperature Fluctuation | Less than ±1.0°C |
| Temperature Resolution | 1°C |
| Chamber Temperature Uniformity | Approximately ±3-5°C |
| Power Supply | Single-phase 220 V / 50 Hz |
| Recommended External Cable | 12 mm² or larger, with neutral and protective earth conductors |

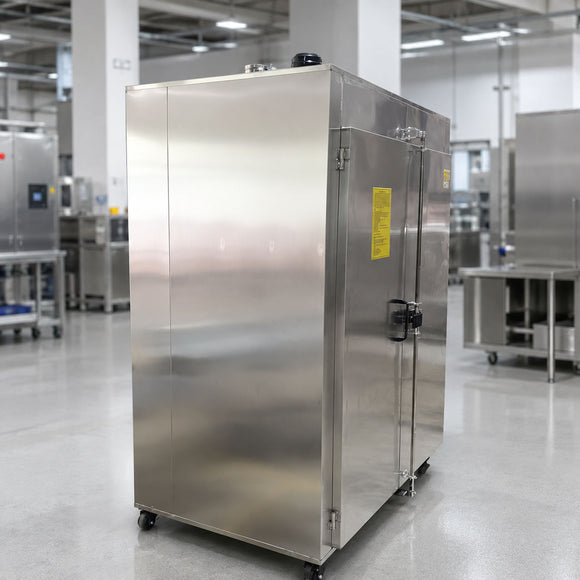

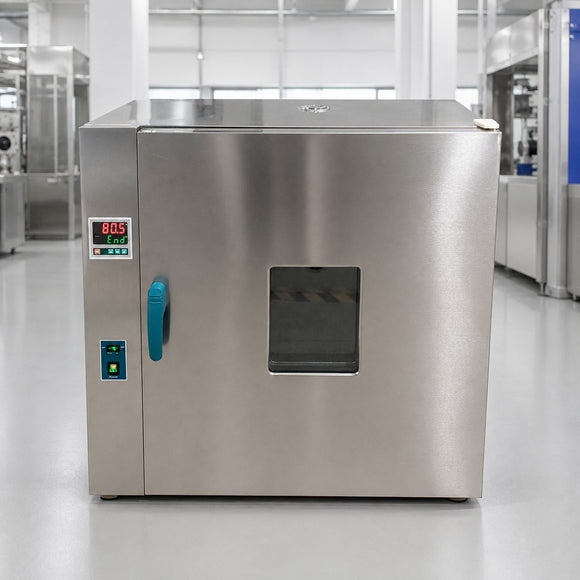

Single-Door 150°C Oven
| Door Configuration | Single door |
|---|---|
| Internal Dimensions (H × W × D) | 700 × 600 × 500 mm |
| External Dimensions (H × W × D) | 1450 × 1000 × 800 mm |
| Maximum Temperature | 150°C, adjustable |
| Total Power | 4 kW |
| Heat-Up Time | 30-40 minutes from empty/cold to 150°C |
| Temperature Fluctuation | Less than ±1.0°C |
| Temperature Resolution | 1°C |
| Chamber Temperature Uniformity | Approximately ±3-5°C |
| Power Supply | Single-phase 220 V / 50 Hz |
| Recommended External Cable | 6 mm² or larger, with neutral and protective earth conductors |
Construction and Standard Features
- Oven body: 1.5 mm formed and welded 304 stainless steel outer panels, 1.2 mm 304 stainless steel inner panels, and aluminum silicate thermal insulation.
- Reinforced floor: 5.0 mm steel plate with a welded 1.2 mm 304 stainless steel top layer and thermal insulation.
- Door construction: 80 mm thick door with 1.5 mm 304 stainless steel outer panels and a 304 stainless steel inner surface.
- Heating system: Stainless steel heating elements installed on both sides of the oven chamber, wired with 6 mm² high-temperature cable.
- Hot-air circulation: One high-temperature circulation fan mounted on top of the oven, complete with a welded fan shaft plate and matching impeller.
- Control and protection: Digital temperature controller, two K-type thermocouples, over-temperature, short-circuit, overload, and leakage protection, plus fan/heater interlocking so airflow starts before heating.
Specifications are based on the supplied technical document. Confirm voltage, cable sizing, installation conditions, and required chamber dimensions before ordering.
