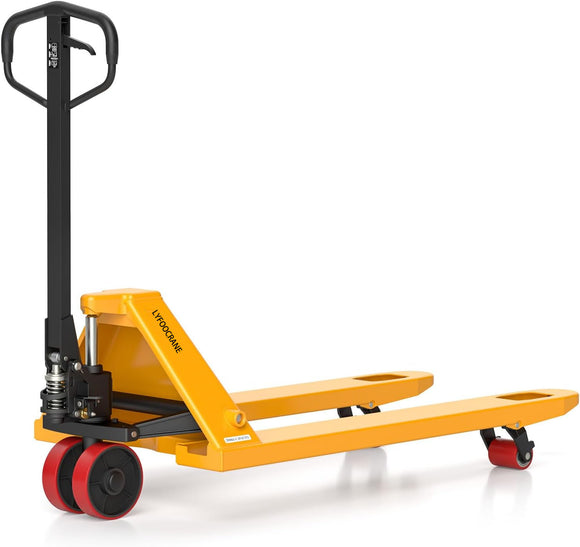

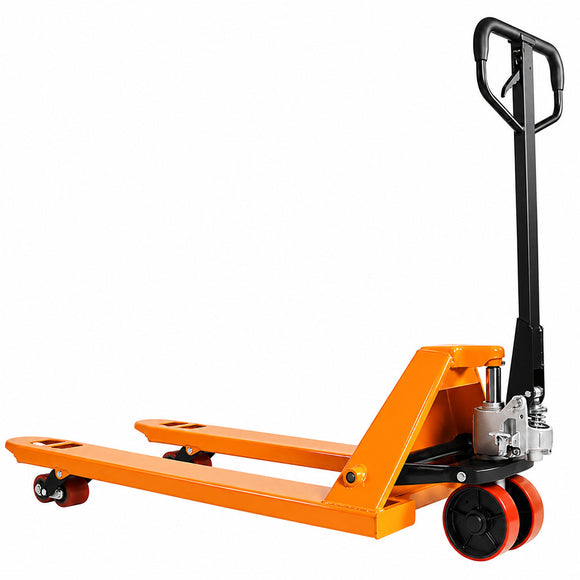

Heavy-Duty Manual Pallet Truck | 2 to 5 Ton Capacity
A dependable hand pallet truck starts with the details you can see and service: reinforced steel forks, a robust hydraulic assembly and wheels selected for your floor. The SL-F series offers four rated capacities for moving palletized goods in warehouses, workshops and loading areas.

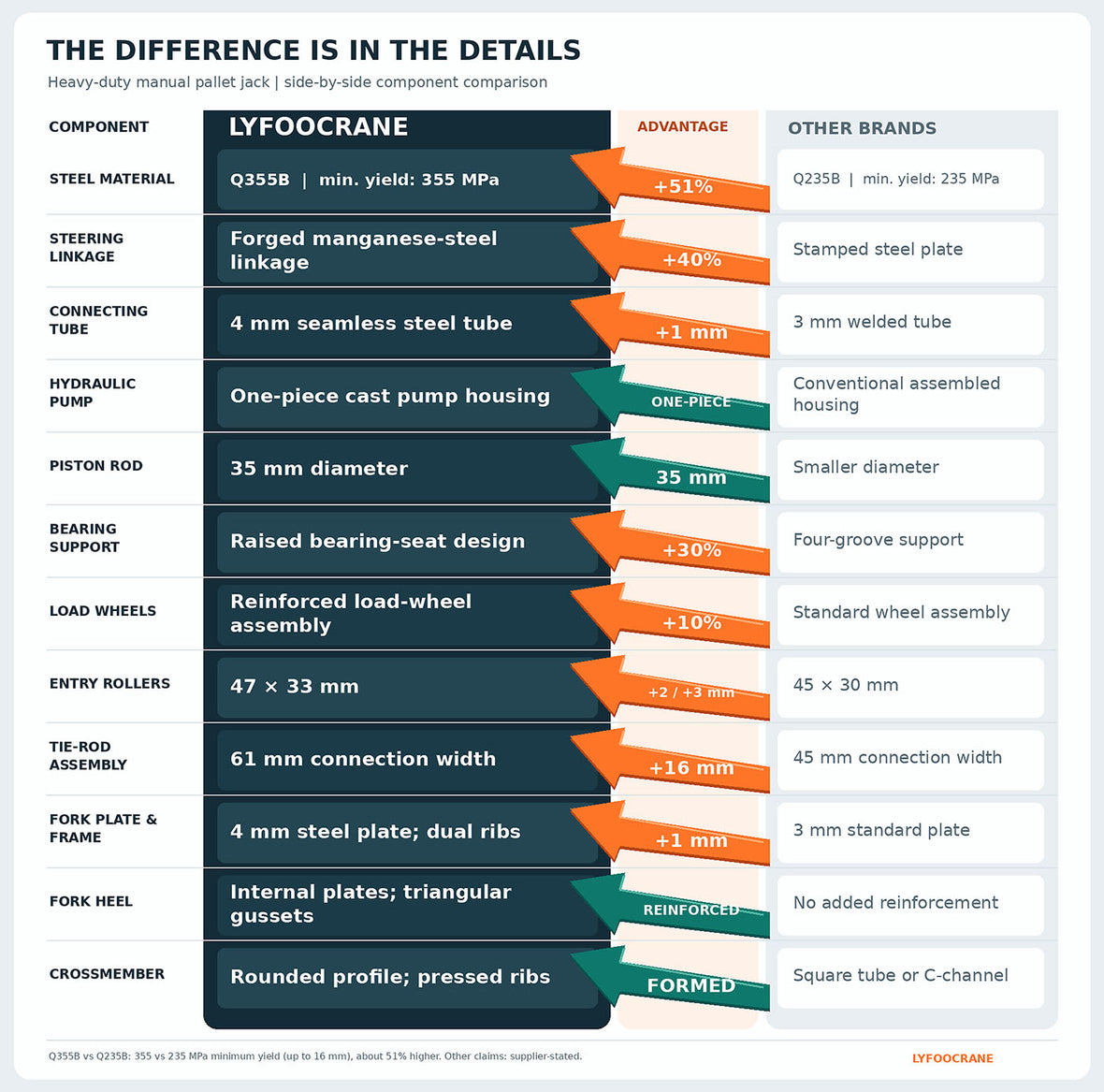

Quality Built Into Every Detail
Q355B Steel Plate
Q355B has 51% higher yield strength than Q235B.Built with a robust structure, this heavy-duty pallet jack meets applicable Chinese national standards.
Forged Steering Linkage
Manganese-steel forging strengthens the steering linkage where repeated pulling and turning place demands on the truck.

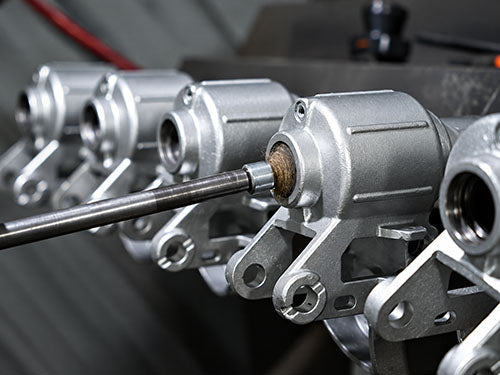

One-Piece Cast Pump
The integrated pump housing provides a solid hydraulic assembly with a compact, clean layout.
Protected Hydraulic Components
The supplied product information describes a plated piston surface designed to resist corrosion and wear.
Reinforced Bearing Support
A raised bearing seat supports the steering assembly; its lubrication point makes regular maintenance easier.
Reinforced Steel Forks
4 mm formed fork plate and internal reinforcement provide a sturdy platform for daily pallet handling.
Dual Fork Reinforcement
Pressed channels along the forks add stiffness without complicating the fork profile.
Wider Tie-Rod Connection
The manufacturer highlights a 61 mm widened connection at the linkage assembly for improved structural support.
Supported Fork Heels
Internal plates and triangular bracing support the high-stress area near the fork roots.
Easy Pallet Entry
Rounded fork tips and small entry rollers help guide the forks into suitable pallet openings.
Tandem Load Wheels
Dual wheels under each fork distribute contact as the truck travels over appropriate industrial floors.
Wheel Material Options
Choose polyurethane or nylon wheel configurations to match the application and floor conditions; confirm availability by model.
Designed for Demanding Daily Use

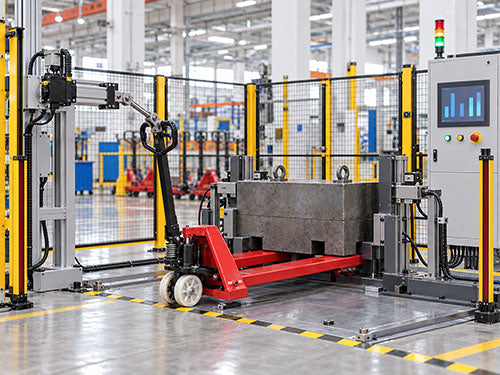

The supplier describes fatigue-cycle testing of the hydraulic assembly and rated-load checks before dispatch. The reinforced linkage, formed forks and accessible lubrication point support long-term serviceability. Request current test records and configuration details for your order.
Dimensions & Specifications
| Specification | Unit | SL-F20 | SL-F25 | SL-F30 | SL-F50 |
|---|---|---|---|---|---|
| Rated capacity (Q) | kg | 2,000 | 2,500 | 3,000 | 5,000 |
| Load center (D) | mm | 575 / 610 | |||
| Lowered fork height (h13) | mm | 85 | |||
| Maximum fork height (h3) | mm | 195 | |||
| Outside fork width (b5) | mm | 550 / 685 | |||
| Fork length (l) | mm | 1,150 / 1,220 | |||
| Minimum outside turning radius (Wa) | mm | 1,340 / 1,410 | |||
| Net weight (G0) | kg | 60-69 | 66-75 | 66-78 | 110 |
| Steering wheel (diameter x width) | mm | Ø180 x 50 | |||
| Tandem load wheels (diameter x width) | mm | Ø80 x 70 | Ø83 x 80 | ||
| Handle height (h14) | mm | 1,230 | |||
| Overall length (l1) | mm | 1,540 / 1,610 | 1,550 / 1,620 | 1,550 / 1,620 | 1,550 / 1,620 |
| Overall width (b1) | mm | 550 / 685 | |||
| Ground clearance at wheelbase center (m2) | mm | 24 | |||
A slash indicates alternative configurations, usually corresponding to fork size. Confirm the exact dimensions, net weight and wheel material of the selected variant before ordering. The supplier's dimensional chart lists 85 mm for the lowered height; this differs from an earlier SL-F brochure, so confirm against the final production drawing.
Choose the Right Configuration

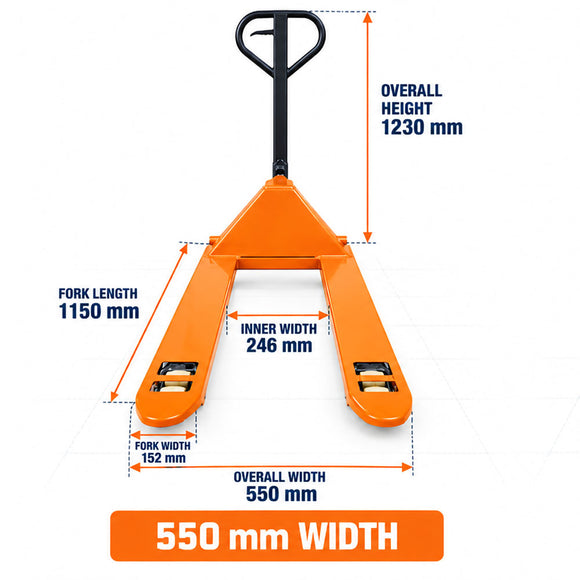

Standard Fork Width
550 mm outside fork width for compatible pallet openings.

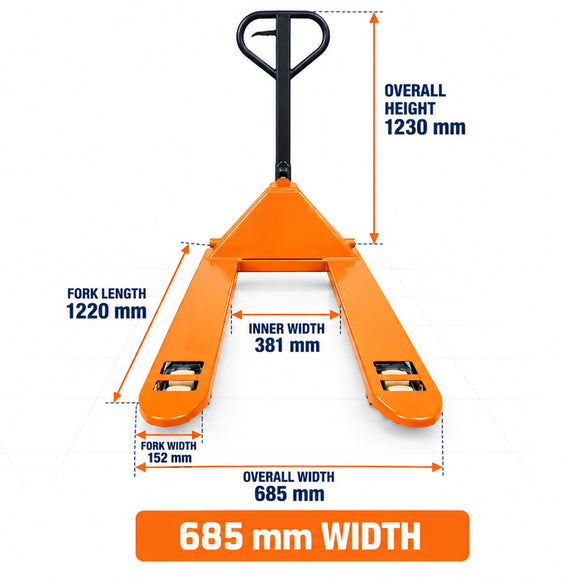

Wide Fork Version
685 mm outside fork width when a broader fork stance is needed.
Wheel Selection
PU and nylon choices are listed by the supplier; select according to floor and operating conditions.

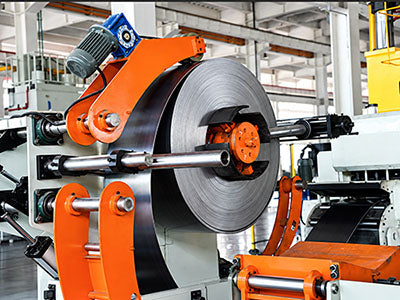

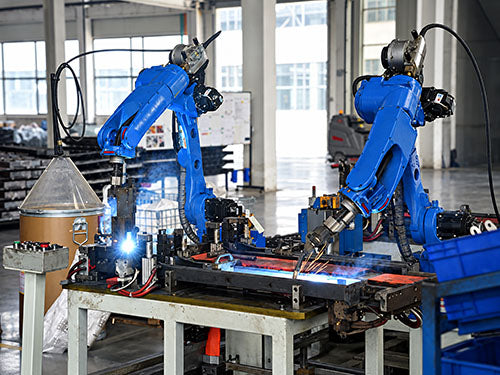

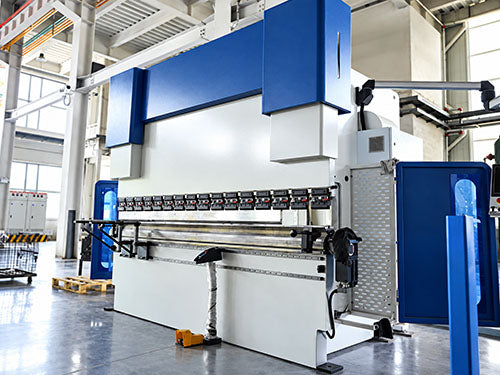

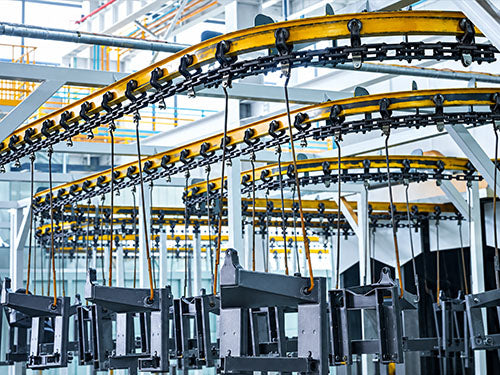

Production Gallery
