LYFOOCRANE LONG-TRAVEL SERVO WINCHES

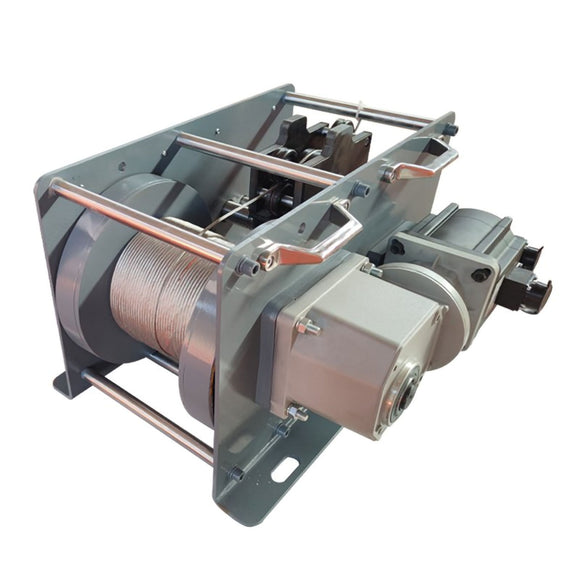

Servo Electric Winch with Automatic Level-Wind System
A compact programmable winch designed for long rope storage, controlled motion and orderly multilayer spooling.
Built for Long Rope Travel
The reciprocating screw level-wind mechanism guides the wire rope across the drum as it rotates, making this configuration suitable for long-travel lifting, cable deployment and automated positioning. Servo and PLC controls can be adapted for speed profiles, travel references and integration with other equipment.
Mechanically guided multilayer spooling.
Programmable speed and operating logic.
Compact transmission arrangement.
Galvanized, rotation-resistant constructions available.
120 kg Reference Model
| Rated Pull | Motor | Rope | Drum Speed | Average Rope Speed | Published Rope Length |
|---|---|---|---|---|---|
| 120 kg | 0.85 kW | Ø4 mm | 37.5 rpm | 22.15 m/min | 230 m |
| Length | Width | Height |
|---|---|---|
| 540 mm | 550 mm | 350 mm |
The page overview also describes 200 kg with 45 m rope and calls 45 m “standard.” Treat the 120 kg / 230 m data as a separate reference configuration and confirm the required model before publication.
Suitable Applications
Stage equipment · automated material positioning · long-travel test rigs · cable deployment · machine integration
Rotation-resistant rope can reduce load rotation under defined reeving conditions, but it does not guarantee zero rotation. Final rope construction, fleet angle, drum capacity and safety devices must be selected for the actual duty.
Configure the Required Rope Travel
Send LYFOOCRANE the load, usable travel, rope construction, target speed, duty cycle, voltage and mounting arrangement.
