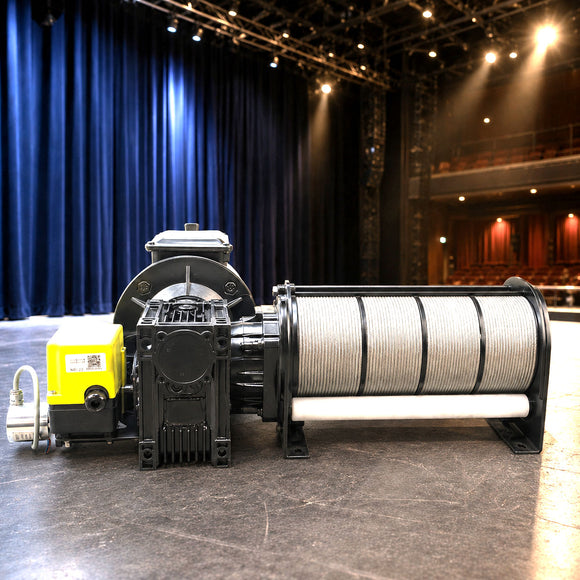

Motorized Stage Rigging Hoist
Also known as a motorized lighting batten hoist or lighting bar winch, this electric stage winch is designed for raising and lowering lighting battens, stage bars, scenery, LED screens, curtains, projection screens, and other suspended stage equipment.
It is suitable for theaters, performance venues, auditoriums, event spaces, clubs, entertainment facilities, school halls, studios, and multipurpose venues.
Designed for Overhead Stage Rigging
The hoist uses an electric motor, gearbox, rope drum, and wire-rope lifting system to provide controlled vertical movement of suspended stage equipment. Multiple wire ropes can be arranged to support the balanced lifting of long lighting battens or stage bars.
Engineered for smooth and reliable operation, the unit is an essential component of a motorized stage-rigging system. Its robust construction and dependable braking arrangement help provide accurate positioning and secure load holding during equipment setup, maintenance, and venue operation.
Key Features
- Motorized lifting for stage and entertainment applications
- Multi-line wire-rope drum for balanced load movement
- Smooth and controlled raising and lowering
- Reliable braking for load holding and positioning
- Heavy-duty gearbox and robust structural construction
- Compact arrangement for overhead or machinery-room installation
- Suitable for lighting battens, scenery, curtains, and LED screens
- Custom configurations available for different venue requirements
Typical Applications
- Theater lighting battens
- Stage lighting bars
- LED display screens
- Stage curtains and drapes
- Scenery and backdrops
- Projection screens
- Acoustic equipment
- Suspended stage equipment
Technical Specifications
| Specification | 200 kg Model | 300 kg Model |
|---|---|---|
| Rated Lifting Capacity | 200 kg | 300 kg |
| Motor Power | 0.55 kW | 0.75 kW |
| Gearbox Output Speed | 14 rpm | 14 rpm |
| Rated Gearbox Output Torque | 206 N·m | 302 N·m |
| Rope Speed | 8 m/min | 15 cm/s (9 m/min) |
| Unit Weight | 45 kg | 70 kg |
| Wire Rope Diameter | 4 mm | 4 mm |
| Drum Rope Capacity | 12 m | Not specified |
| Total Wire Rope Length | 15 m | 18 m |
| Gear Ratio | 100:1 | 100:1 |
| Maximum Lifting Height | 10 m | Not specified |
Specifications are based on the example configurations shown. Final parameters may vary according to the selected design and application.
Overall Dimensions
| Model | A — Length | B — Width | C — Height |
|---|---|---|---|
| 200 kg | 875 mm | 529 mm | 320 mm |
| 300 kg | 1,160 mm | 650 mm | 350 mm |
Installation Configurations
Custom-Engineered Solutions
The drawings and specifications shown on this page represent example configurations. Each stage rigging hoist can be engineered according to the venue layout, suspended load, required travel, installation conditions, and operating requirements.
- Rated lifting capacity
- Lifting and lowering speed
- Wire-rope length and quantity
- Rope payout direction
- Drum size and rope arrangement
- Control method
- Material and surface finish
- Installation configuration
