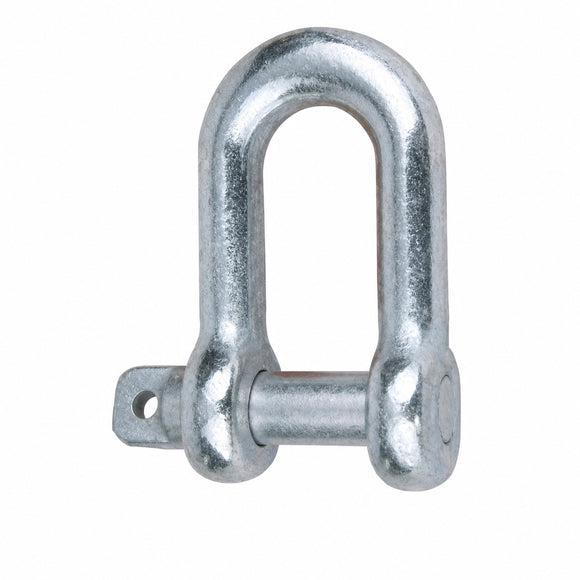

High-Strength Shackle
Product Overview
The High-Strength Shackle is designed for lifting, rigging and load connection applications. It is manufactured from forged carbon steel and is available with working load limits from 1 to 20 metric tons.
Product Features
- Drop-forged from high-quality carbon steel for reliable strength and durability.
- Manufacturing proof testing is performed at three times the rated working load.
- Sample units undergo breaking-load testing.
- Every shackle undergoes 100% magnetic particle inspection.
Dimensions and Technical Specifications
| Item No. | Working Load Limit (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| SL-S1017-1 | 1 | 57 | 78 | 12 | 20 | 0.15 |
| SL-S1017-2 | 2 | 65 | 95 | 16 | 22 | 0.29 |
| SL-S1017-3 | 3 | 80 | 120 | 20 | 34 | 0.8 |
| SL-S1017-5 | 5 | 100 | 135 | 22 | 39 | 1.12 |
| SL-S1017-8 | 8 | 118 | 152 | 25 | 48 | 2.4 |
| SL-S1017-10 | 10 | 133 | 173 | 30 | 49 | 3.56 |
| SL-S1017-16 | 16 | 155 | 220 | 37 | 56 | 4.8 |
| SL-S1017-20 | 20 | 164 | 240 | 39 | 60 | 5.17 |
