LYFOOCRANE HEAVY-DUTY SERVO WINCHES

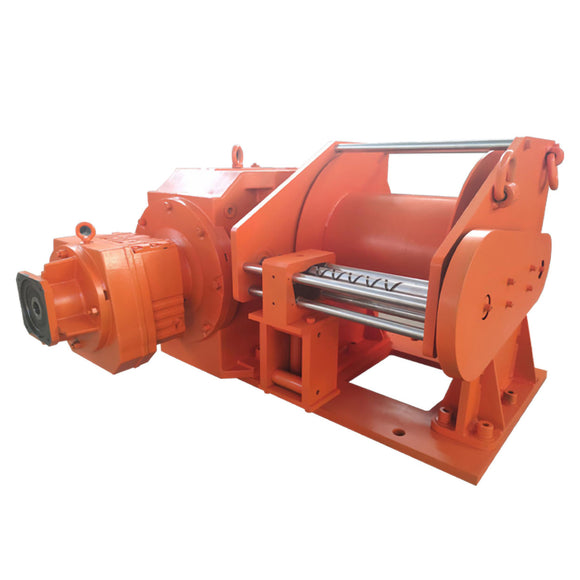

Heavy-Duty Servo Winch Platform, 500–20,000 kg
A configurable high-torque winch family for controlled industrial pulling, positioning and materials-handling systems.
High Torque with Programmable Motion
A servo motor, helical gearbox and PLC controls support adjustable speed, controlled acceleration and repeatable travel. The welded frame carries a large grooved drum, while an automatic rope guide helps distribute the wire rope during winding.
Configurable speed and position profiles.
High-ratio torque transmission.
Improved winding across the drum.
Interlocks, sequencing and system I/O.
Published Reference Configuration
| Rated Capacity | Servo Motor | Gear Ratio | Output Speed | Output Torque | Rope Speed | Rope Diameter |
|---|---|---|---|---|---|---|
| 10,000 kg | 18.5 kW | 250:1 | 5.9 rpm | 26,742 N·m | 0.8–8 m/min | 20 mm |
| Machine Weight | Length | Width | Height |
|---|---|---|---|
| 2,200 kg | 1,527 mm | 1,973 mm | 875 mm |
The source labels this reference both “8,000 kg” and “10,000 kg.” The table value above is reproduced for reference only; the approved rated load must be confirmed from the final engineering data sheet.
Engineering and Safety
Final capacity depends on the effective drum diameter, rope layer, reeving, duty cycle and required design factor. Brake holding capacity, anchorage loads, guarding, limits, overload protection and applicable standards must be defined for each project. This product is not intended for personnel lifting unless separately designed and certified for that duty.
Specify Your Heavy-Duty Winch
Send LYFOOCRANE the line pull, rope travel, speed range, duty cycle, supply voltage, control interface and installation constraints.
