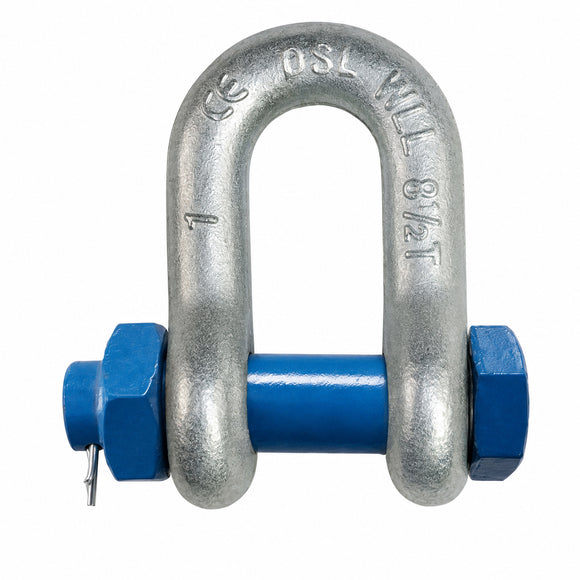

Grade T(8) DX-Type Shackle
Product Overview
The Grade T(8) DX-Type Shackle is designed for lifting, rigging and load-connection applications. The series is available with working load limits from 3.25 to 140 metric tons, providing multiple sizes for different lifting requirements.
Dimensions and Technical Specifications
| Item No. | Working Load Limit (t) |
A (mm) |
B (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SL-S1012-3.25 | 3.25 | 21 | 16 | 13 | 47 | 30 | 42 | 0.3 |
| SL-S1012-5 | 5 | 27 | 19 | 16 | 59 | 38 | 51 | 0.62 |
| SL-S1012-7 | 7 | 32 | 23 | 19 | 70 | 46 | 60.5 | 1.01 |
| SL-S1012-9.5 | 9.5 | 37 | 25 | 22.5 | 82 | 53 | 71.5 | 1.5 |
| SL-S1012-12.5 | 12.5 | 43 | 29 | 25.5 | 94 | 60.5 | 81 | 2.3 |
| SL-S1012-15 | 15 | 46 | 32 | 30 | 106 | 68.5 | 91 | 3.3 |
| SL-S1012-18 | 18 | 52 | 35 | 32 | 116 | 76 | 100 | 4.5 |
| SL-S1012-21 | 21 | 57 | 38 | 35 | 127 | 84 | 111 | 6.4 |
| SL-S1012-30 | 30 | 60.5 | 42 | 38 | 136.5 | 92 | 122 | 7.5 |
| SL-S1012-40 | 40 | 73 | 51 | 44.5 | 162 | 106.5 | 146 | 12.5 |
| SL-S1012-50 | 50 | 83 | 57 | 51 | 185 | 122 | 171.5 | 19.1 |
| SL-S1012-80 | 80 | 105 | 70 | 66.5 | 238 | 144.5 | 203 | 34.5 |
| SL-S1012-110 | 110 | 130 | 83 | 76 | 279 | 165 | 216 | 57 |
| SL-S1012-140 | 140 | 135 | 95 | 92 | 317 | 203 | 240 | 88 |
