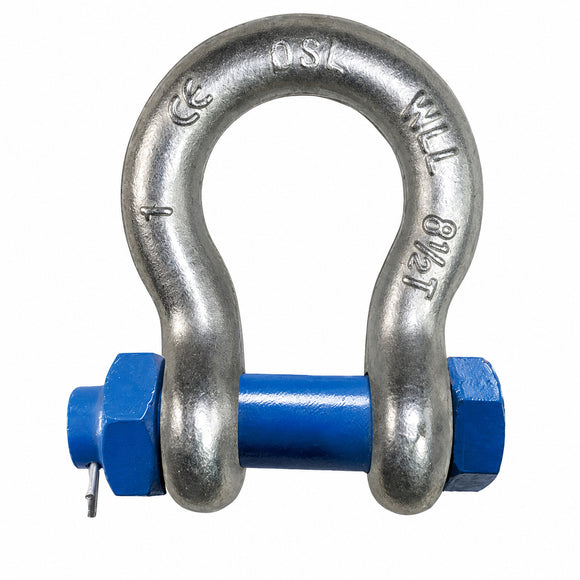

Grade T(8) BX-Type Shackle
Product Overview
The Grade T(8) BX-Type Shackle is designed for lifting, rigging and load-connection applications. The series is available with working load limits from 3.25 to 140 metric tons, providing multiple sizes for different lifting requirements.
Dimensions and Technical Specifications
| Item No. | Working Load Limit (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SL-S1009-3.25 | 3.25 | 21 | 16 | 48 | 13 | 33 | 30 | 59 | 0.38 |
| SL-S1009-5 | 5 | 27 | 19 | 61 | 16 | 43 | 38 | 75 | 0.7 |
| SL-S1009-7 | 7 | 32 | 23 | 71.5 | 19 | 51 | 46 | 89 | 1.1 |
| SL-S1009-9.5 | 9.5 | 37 | 25 | 84 | 22.5 | 58 | 53 | 103 | 1.75 |
| SL-S1009-12.5 | 12.5 | 43 | 29 | 95 | 25.5 | 68 | 60.5 | 119 | 2.6 |
| SL-S1009-15 | 15 | 46 | 32 | 108 | 30 | 74 | 68.5 | 134 | 3.5 |
| SL-S1009-18 | 18 | 52 | 35 | 119 | 33 | 83 | 76 | 147 | 4.65 |
| SL-S1009-21 | 21 | 57 | 38 | 133 | 36 | 84 | 84 | 162 | 6.3 |
| SL-S1009-30 | 30 | 60.5 | 42 | 146 | 39 | 99 | 92 | 175 | 7.9 |
| SL-S1009-40 | 40 | 73 | 51 | 178 | 47 | 127 | 106.5 | 216 | 13.5 |
| SL-S1009-50 | 50 | 83 | 57 | 197 | 53 | 146 | 122 | 248 | 21.5 |
| SL-S1009-80 | 80 | 105 | 70 | 267 | 69 | 184 | 144.5 | 317 | 38 |
| SL-S1009-110 | 110 | 135 | 83 | 330 | 76 | 200 | 165 | 352 | 63.8 |
| SL-S1009-140 | 140 | 145 | 95 | 372 | 92 | 229 | 203 | 413 | 115 |
