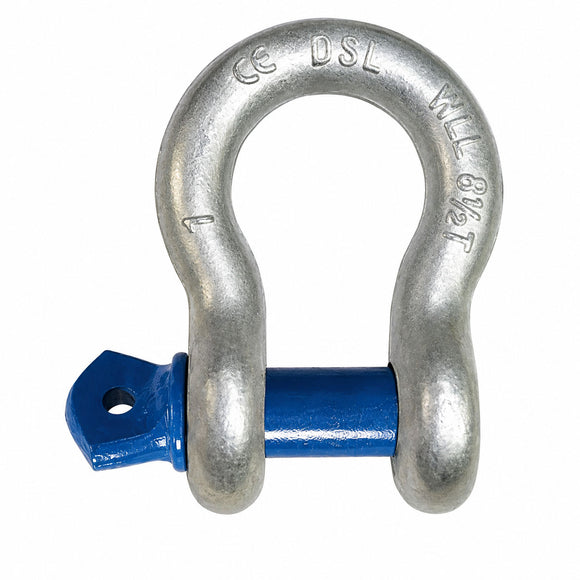

Grade 8 BW Type Shackle
Product Overview
The Grade 8 BW Type Shackle is available in working load limits from 3.25 to 140 metric tonnes. Refer to the dimensional drawing and specification table below to select the required model and size.
Dimensions and Technical Specifications
| Model | WLL (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SL-S1003-3.25 | 3.25 | 21 | 16 | 48 | 13 | 33 | 30 | 59 | 0.35 |
| SL-S1003-5 | 5 | 27 | 19 | 61 | 16 | 43 | 38 | 75 | 0.65 |
| SL-S1003-7 | 7 | 32 | 23 | 71.5 | 19 | 51 | 46 | 89 | 1.01 |
| SL-S1003-9.5 | 9.5 | 37 | 25 | 84 | 22.5 | 58 | 53 | 103 | 1.7 |
| SL-S1003-12.5 | 12.5 | 43 | 29 | 95 | 25.5 | 68 | 60.5 | 119 | 2.5 |
| SL-S1003-15 | 15 | 46 | 32 | 108 | 30 | 74 | 68.5 | 134 | 3.4 |
| SL-S1003-18 | 18 | 52 | 35 | 119 | 33 | 83 | 76 | 147 | 4.6 |
| SL-S1003-21 | 21 | 57 | 38 | 133 | 36 | 92 | 84 | 162 | 6.2 |
| SL-S1003-30 | 30 | 60.5 | 42 | 146 | 39 | 99 | 92 | 175 | 7.7 |
| SL-S1003-40 | 40 | 73 | 51 | 178 | 47 | 127 | 106.5 | 216 | 12.9 |
| SL-S1003-50 | 50 | 83 | 57 | 197 | 53 | 146 | 122 | 248 | 20.5 |
| SL-S1003-80 | 80 | 105 | 70 | 267 | 69 | 184 | 144.5 | 317 | 37.6 |
| SL-S1003-110 | 110 | 135 | 83 | 330 | 76 | 200 | 165 | 352 | 57 |
| SL-S1003-140 | 140 | 145 | 95 | 372 | 92 | 229 | 203 | 413 | 113 |
