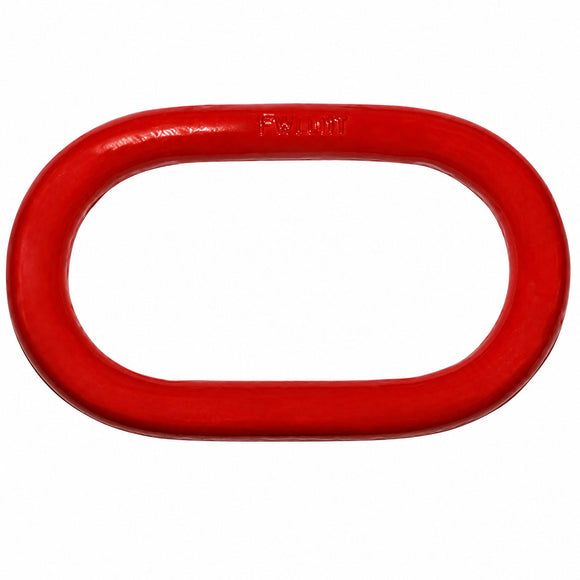

G80 American-Type Forged Master Link
Grade 80 forged master link for assembling chain slings and wire-rope lifting assemblies. Multiple sizes are available for single-leg and two-leg chain sling configurations.
| Item Code | Weight (kg) |
G80 Chain Size |
WLL, 1-Leg (t) |
WLL, 2-Leg 0–45° (t) |
Wire-Rope WLL (t) |
A (mm) | B (mm) | D (mm) |
|---|---|---|---|---|---|---|---|---|
| SL-R1002-3.4 | 0.36 | 1/4 | 1.5 | 2.12 | 3.4 | 127±6 | 63.5±5 | 13±1 |
| SL-R1002-4 | 0.7 | 5/16 3/8 |
2 3.15 |
2.8 — |
4 | 152±6 | 76±5 | 16±1 |
| SL-R1002-5.6 | 0.93 | 3/8 | 3.15 | 4.25 | 5.6 | 140±6 | 70±5 | 19±1 |
| SL-R1002-6.9 | 1.5 | 3/8 1/2 |
3.15 5.3 |
4.25 — |
6.9 | 160±6 | 90±5 | 22±1 |
| SL-R1002-11.8 | 2.1 | 1/2 5/8 |
5.3 8 |
7.5 11.2 |
11.8 | 178±6 | 89±5 | 25±1 |
| SL-R1002-17.7 | 4.24 | 5/8 3/4 |
8 11.2 |
11.2 16 |
17.7 | 222±7 | 111±6 | 32 +1/−2 |
| SL-R1002-27.7 | 7.17 | 3/4 7/8 |
11.2 15 |
16 21.2 |
27.7 | 267±7 | 135±6 | 38 +1/−2 |
| SL-R1002-38.5 | 11.55 | 7/8 1 |
15 21.2 |
21.2 — |
38.5 | 305±10 | 152±6 | 45 +1/−2 |
| SL-R1002-46.5 | 17.2 | 1 1 1/4 |
21.2 31.5 |
30 — |
46.5 | 355±10 | 178±6 | 51 +1/−2 |
| SL-R1002-64.9 | 24.5 | 1 1/4 | 31.5 | 45 | 64.9 | 406±10 | 203±7 | 57 +1/−2 |
| SL-R1002-72.6 | 30.9 | — | — | — | 72.6 | 406±10 | 203±7 | 63.5±3 |
| SL-R1002-98.4 | 39.5 | — | — | — | 98.4 | 406±10 | 241±7 | 70±3 |
| SL-R1002-103 | 50.34 | — | — | — | 103 | 457±15 | 228±7 | 76±3 |
| SL-R1002-119 | 65.68 | — | — | — | 119 | 508±15 | 254±7 | 82.5±3 |
| SL-R1002-126 | 90.24 | — | — | — | 126 | 610±15 | 305±10 | 89±3 |
| SL-R1002-152 | 89.27 | — | — | — | 152 | 508±15 | 254±7 | 95±3 |
| SL-R1002-169 | 103.43 | — | — | — | 169 | 508±15 | 254±7 | 102±3 |
