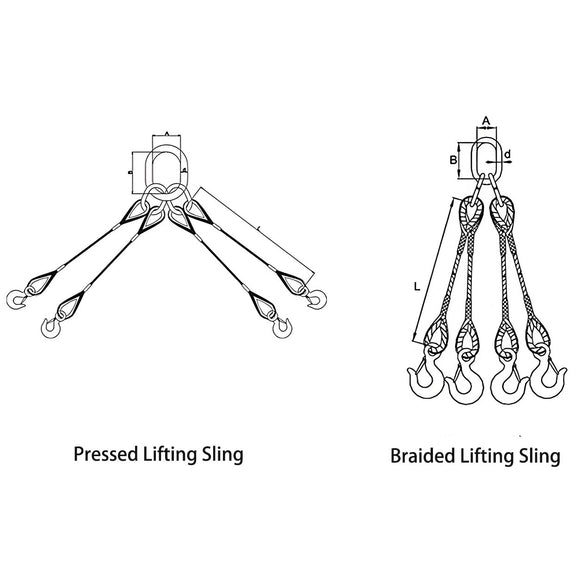

Wire Rope Sling Assembly
Model: SL-WCFH Series • For Lifting Applications
Specifications & Dimensions
| Model | Wire Dia. (mm) | WLL 0°-45° (KN) | WLL 45°-60° (KN) | A (mm) | B (mm) | D (mm) | Hook Type |
|---|---|---|---|---|---|---|---|
| SL-WCFH-6 | 6 | 5.6 | 4.0 | 65 | 130 | 16 | (US) S6 |
| SL-WCFH-7 | 7 | 7.6 | 5.4 | 65 | 130 | 16 | (US) S6 |
| SL-WCFH-8 | 8 | 9.9 | 7.1 | 65 | 130 | 16 | (US) S6 |
| SL-WCFH-9 | 9 | 12.6 | 9 | 65 | 130 | 16 | (US) S6 |
| SL-WCFH-10 | 10 | 15 | 11 | 65 | 130 | 16 | (US) S6 |
| SL-WCFH-11 | 11 | 19 | 13 | 65 | 130 | 16 | (US) S6 |
| SL-WCFH-12 | 12 | 22 | 16 | 80 | 150 | 20 | (US) S6 |
| SL-WCFH-13 | 13 | 26 | 19 | 80 | 150 | 20 | (US) S6 |
| SL-WCFH-14 | 14 | 30 | 22 | 80 | 150 | 20 | (US) S6 |
| SL-WCFH-16 | 16 | 40 | 28 | 90 | 160 | 24 | (US) S6 |
| SL-WCFH-18 | 18 | 50 | 36 | 90 | 160 | 24 | (US) S6 |
| SL-WCFH-20 | 20 | 62 | 44 | 100 | 190 | 28 | (US) S6 |
| SL-WCFH-22 | 22 | 75 | 54 | 100 | 190 | 28 | (US) S6 |
| SL-WCFH-24 | 24 | 89 | 64 | 110 | 200 | 32 | (US) S6 |
| SL-WCFH-26 | 26 | 105 | 75 | 110 | 200 | 32 | (US) S6 |
| SL-WCFH-28 | 28 | 122 | 87 | 120 | 230 | 34 | (US) S6 |
| SL-WCFH-30 | 30 | 138 | 99 | 135 | 250 | 38 | (US) S6 |
| SL-WCFH-32 | 32 | 159 | 113 | 135 | 250 | 38 | (US) S6 |
| SL-WCFH-34 | 34 | 178 | 127 | 140 | 270 | 42 | (US) S6 |
| SL-WCFH-36 | 36 | 201 | 144 | 140 | 270 | 42 | (US) S6 |
| SL-WCFH-38 | 38 | 224 | 159 | 160 | 310 | 46 | Eye Hook |
| SL-WCFH-40 | 40 | 248 | 177 | 160 | 310 | 46 | Eye Hook |
| SL-WCFH-42 | 42 | 273 | 195 | 180 | 330 | 52 | Eye Hook |
| SL-WCFH-44 | 44 | 300 | 214 | 180 | 330 | 52 | Eye Hook |
| SL-WCFH-46 | 46 | 327 | 234 | 180 | 330 | 52 | Eye Hook |
| SL-WCFH-48 | 48 | 356 | 254 | 180 | 330 | 52 | Eye Hook |
| SL-WCFH-50 | 50 | 388 | 277 | 180 | 330 | 52 | Eye Hook |
| SL-WCFH-52 | 52 | 419 | 299 | 210 | 410 | 62 | Eye Hook |
| SL-WCFH-54 | 54 | 451 | 322 | 210 | 410 | 62 | Eye Hook |
| SL-WCFH-56 | 56 | 485 | 347 | 210 | 410 | 62 | Eye Hook |
| SL-WCFH-58 | 58 | 521 | 372 | 210 | 410 | 68 | Eye Hook |
| SL-WCFH-60 | 60 | 558 | 398 | 210 | 410 | 68 | Eye Hook |
Wire Rope Sling Assembly • Model SL-WCFH
Capacity varies with sling angle. Refer to WLL 0°-45° and 45°-60° ratings. Hook types: (US) S6 or Eye Hook as specified.
