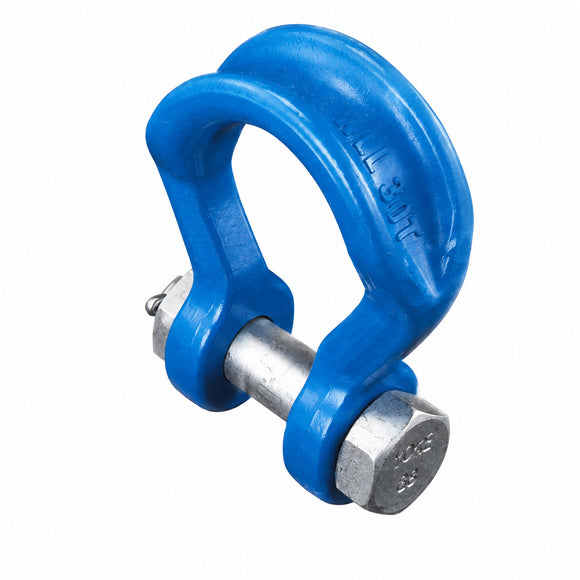

American-Type Wide Body Shackle
Product Overview
The American-Type Wide Body Shackle is designed for heavy-duty lifting and rigging applications. Its wide bow provides increased sling-bearing area, while the forged alloy-steel body and heat-treated pin deliver reliable strength across working load limits from 7 to 300 metric tons.
Product Features
- The shackle body is forged from high-strength alloy steel. Both the body and pin are quenched and tempered, with a powder-coated surface.
- Proof load is tested at twice the specified working load limit.
- Sample units undergo 20,000-cycle fatigue testing at 1.5 times the working load limit.
- Every shackle undergoes 100% magnetic particle inspection.
- The minimum breaking load is five times the working load limit.
Dimensions and Technical Specifications
| Item No. |
Working Load Limit (t) |
Net Weight (kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
H (mm) |
J (mm) |
K (mm) |
P (mm) |
R (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-S1016-7 | 7 | 1.83 | 106 | 32 | 18 | 23 | 50 | 32 | 90 | 41 | 32 | 105 | 150 |
| SL-S1016-12.5 | 12.5 | 4.0 | 138 | 43 | 24 | 29 | 60 | 35 | 118 | 55 | 42 | 140 | 194 |
| SL-S1016-18 | 18 | 6.76 | 170 | 52 | 30 | 35 | 70 | 38 | 148 | 64 | 51 | 172 | 240 |
| SL-S1016-30 | 30 | 12.0 | 195 | 60 | 35 | 42 | 90 | 45 | 176 | 80 | 64 | 216 | 290 |
| SL-S1016-40 | 40 | — | 235 | 74 | 42 | 50 | 102 | 58 | 205 | 95 | 76 | 270 | 346 |
| SL-S1016-55 | 55 | 31 | 264 | 82 | 50 | 58 | 110 | 62 | 238 | 120 | 88 | 312 | 398 |
| SL-S1016-75 | 75 | 45 | 365 | 105 | 54 | 70 | 130 | 68 | 292 | 128 | 92 | 312 | 468 |
| SL-S1016-125 | 125 | — | 420 | 130 | 65 | 80 | 145 | 80 | 365 | 150 | 110 | 380 | 575 |
| SL-S1016-200 | 200 | 168 | 525 | 150 | 85 | 105 | 185 | 110 | 480 | 220 | 138 | 495 | 760 |
| SL-S1016-300 | 300 | 453 | 615 | 188 | 102 | 134 | 235 | 138 | 600 | 264 | 155 | 594 | 948 |
