LYFOOCRANE FIELD INSTRUMENT WINCHES

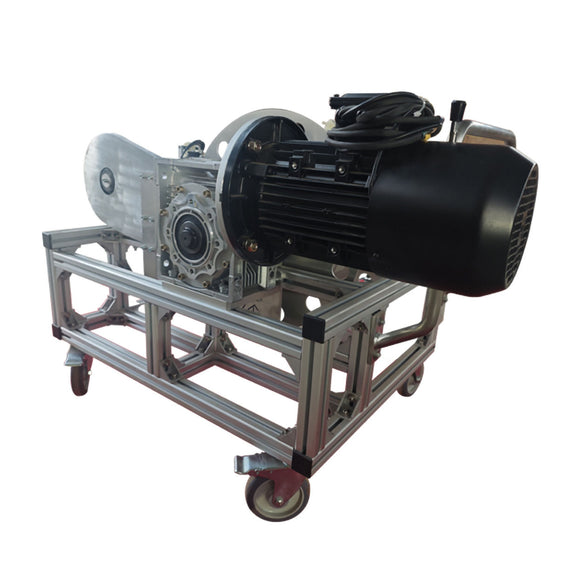

Aluminum Logging Winch with PLC, Length and Load Monitoring
A battery-powered cable deployment system for field logging, exploration and instrument lowering applications.
Cable Deployment with Real-Time Operating Data
The aluminum frame reduces corrosion exposure and transport burden. A DC motor and battery supply support field deployment, while PLC/HMI controls can display rope length, speed and measured load. A traversing screw guide manages the cable across the drum.
Field-ready, corrosion-resistant construction.
Operation away from fixed AC power.
Operating modes and data display.
Length, speed and tension-related monitoring.
150 kg Reference Model
| Capacity | Motor | Rope Speed | Cable Capacity | Gear Ratio | Weight |
|---|---|---|---|---|---|
| 150 kg | 2.2 kW | 0.4–0.8 m/s | 213 m | 40:1 | 160 kg |
| Length | Width | Height |
|---|---|---|
| 1,095 mm | 730 mm | 725 mm |
The source lists “output rotational speed: 150 mm,” which is dimensionally invalid and has therefore been omitted. Confirm the actual drum or motor speed.
Typical Uses
Oilfield logging · mining exploration · borehole instruments · engineering surveys · research cable deployment
Measured tension and depth require sensor calibration, cable-layer compensation and defined uncertainty. Environmental sealing, hazardous-area suitability and field battery protection must be specified separately.
Build a Logging Package for Your Instrument
Provide cable diameter and mass, depth, speed, sensor load, data channels, battery runtime and environmental conditions.
