LYFOOCRANE SHORE-POWER CABLE MANAGEMENT

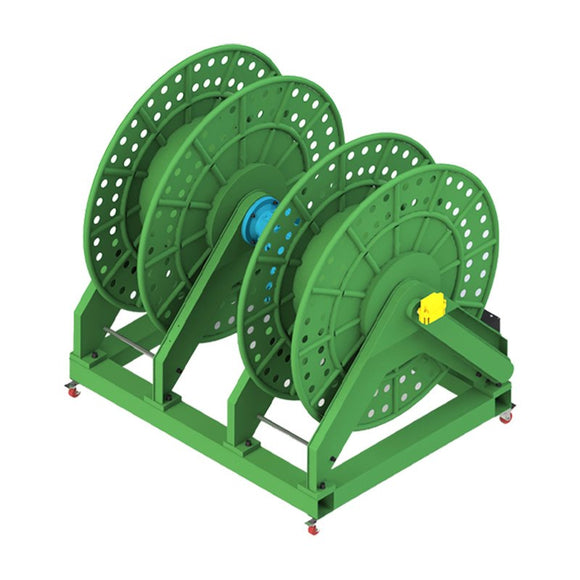

52 mm Marine Shore-Power Cable Reel Winch
A mobile large-capacity reel for ship-to-shore power cable deployment, retrieval and organized storage at ports, terminals and shipyards.
Engineered for the Application
A mobile large-capacity reel for ship-to-shore power cable deployment, retrieval and organized storage at ports, terminals and shipyards. Final drum geometry, drive, controls and protection are configured around the actual cable, rope or hose system.
Smooth high-ratio electric drive.
Continuous transmission while the reel rotates.
Organized storage across the drum.
Caster-supported positioning with project brakes.
Reference Specifications
| Cable Diameter | Reel Capacity | Cable Weight / Pull | Motor | Gear Ratio | Output Speed | Cable Speed | Machine Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|
| 52 mm | 120 m | 125 kg published | 0.55 kW published | 154.02:1 | 5.7 rpm | 24.5 m/min published | 1,260 kg | 2,078 × 1,600 × 2,064 mm |
Typical Applications
Ports and terminals · vessel berthing · shipyards · marine engineering · automated shore-power connections
Engineering Note
The source incorrectly labels a 30–200 m cable-length range as “load capacity” and elsewhere shows rope speed as both 15–24.5 m/min and 24.5 m/min. Motor power also appears only in a later case summary. Confirm cable mass, pull, speed, electrical rating and complete slip-ring specification before quotation.
Final selection must also define duty cycle, ambient conditions, guarding, emergency stopping, anchorage and applicable local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Project Configuration
Send the line type and diameter, working length, required pull, speed, duty cycle, power supply, control interface, environment and installation drawing.
