LYFOOCRANE HIGH-SPEED SERVO WINCHES

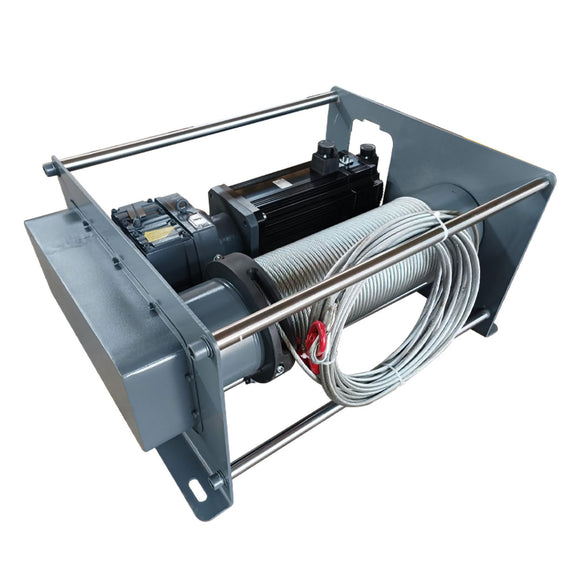

200 kg High-Speed Parallel Servo Winch
A compact geared winch for rapid cable motion, programmable torque and closed-loop tension applications.
Fast Response in a Space-Efficient Layout
A 7.5 kW servo motor with holding brake drives an R-series parallel-shaft gearbox. The coaxial packaging reduces width, while a hoop-style rope guide helps control winding. Torque mode can be used as part of a tension-control system when paired with suitable force feedback.
Rapid cable payout and retrieval.
Compact inline machinery arrangement.
Programmable drive torque.
Guided winding across the drum.
Reference Specifications
| Capacity | Servo Motor | Motor Speed | Drum Speed | Average Rope Speed | Wire Rope | Dimensions |
|---|---|---|---|---|---|---|
| 200 kg | 7.5 kW with brake | 1,500 rpm | 304.26 rpm | 172.05 m/min | 8 mm | 933 × 620 × 408 mm |
The source specifies 50 m of rope but separately gives 35 m as drum capacity. Treat 35 m as the maximum drum value until the winding arrangement and usable travel are confirmed.
High-Speed System Design
At the published rope speed, guarding and access control are essential. The finished machine should include overspeed detection, controlled braking, upper and lower limits, rope-retention features and an emergency stop. Constant motor torque does not produce constant rope tension as drum radius changes; use calibrated load feedback where tension accuracy matters.
Define Your High-Speed Duty Cycle
Provide required line pull, usable rope travel, acceleration, cycle frequency, tension tolerance, control signals and safety standard.
