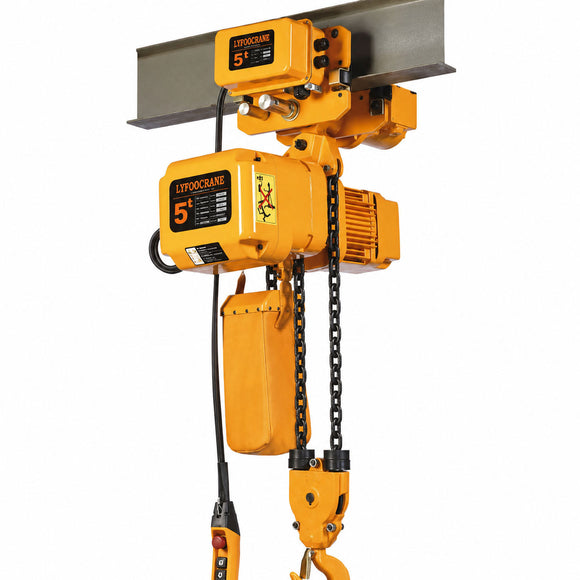

5-Ton Electric Chain Hoist with Motorized Trolley
Designed for lifting and powered horizontal load travel on an I-beam, this 5-ton electric chain hoist combines electric lifting, motorized trolley movement and pendant control in one compact unit. Its 2.7 m/min lifting speed supports steady, controlled handling in workshops, warehouses and industrial production areas.
5-Ton Electric Chain Hoist with Motorized Trolley
5-Ton Lifting CapacitySuitable for general industrial lifting and material-handling applications requiring a higher load capacity.
2.7 m/min Lifting SpeedProvides steady vertical movement for controlled load handling and positioning.
Motorized TrolleyPowered horizontal travel enables efficient movement along compatible I-beams.
Product Overview
| Model | Rated Capacity | Lifting Height | Lifting Speed | Hoist Motor | Trolley Motor | Load Chain | Overall Height (H) |
|---|---|---|---|---|---|---|---|
| HHBD05SK-02 | 5 t | 3 / 9 m | 2.7 m/min | 3.0 kW | 0.75 kW | Ø11.2 mm | 880 mm |
Technical Specifications
| Model | Capacity | Lift | Lifting Speed | Hoist Power | Hoist Motor Speed | Hoist Motor | Voltage | Frequency | Trolley Power | Trolley Motor Speed | Travel Speed | Trolley Motor | Trolley Voltage | Frequency | I-Beam Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD05SK-02 | 5 t | 3 / 9 m | 2.7 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.75 kW | 1440 r/min | 10 / 20 m/min | 3-phase | 220–440 V | 50/60 Hz | 110–180 mm |
Dimensions
HHBD05SK-02 Dimensional Drawing
| Model | H | A | B | D | J | K | L | N | R | T | P | Q | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD05SK-02 | 880 | 785 | 395 | 465 | Ø54 | Ø60 | 45 | 43 | 142 | 231 | 296 | 156 | Ø11.2 |
Dimensions: All dimensional values are in millimeters unless otherwise stated. Confirm the required voltage, lifting height, travel speed and I-beam flange width before ordering.
Typical Applications
Suitable for workshops, warehouses, assembly areas, production lines and general industrial material-handling operations requiring both vertical lifting and powered beam travel.
