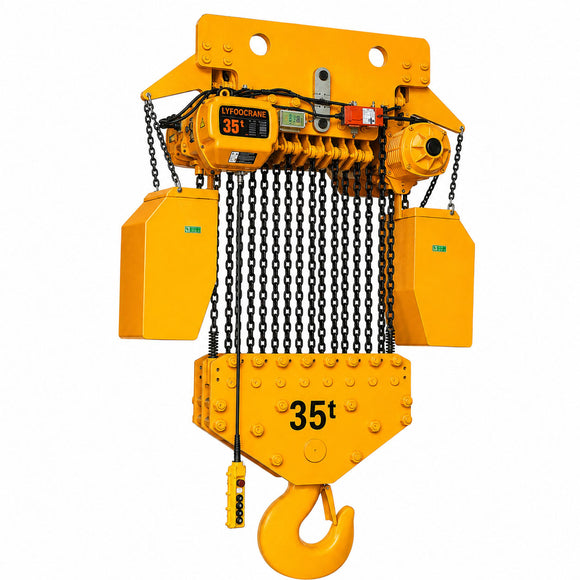

35-Ton Heavy-Duty Electric Chain Hoist
Engineered for demanding industrial lifting, this 35-ton electric chain hoist combines a multi-fall load-chain system, twin lifting motors and powered trolley travel. Its 0.7 m/min lifting speed supports stable, controlled movement of heavy loads in manufacturing, assembly and material-handling operations.
35-Ton Heavy-Duty Electric Chain Hoist
35-Ton CapacityDesigned for demanding industrial lifting and heavy material handling.
0.7 m/min Lifting SpeedProvides steady vertical movement for controlled load positioning.
Powered Trolley TravelSupports horizontal movement along compatible I-beams.
Product Overview
| Model | Capacity | Lifting Height | Lifting Speed | Lifting Motors | Trolley Motors | Travel Speed | I-Beam Width | Overall Height (H) |
|---|---|---|---|---|---|---|---|---|
| HHBD35-16 | 35 t | 3 / 9 m | 0.7 m/min | 3.0 kW × 2 | 0.75 kW × 2 | 11 / 21 m/min | 150–220 mm | 1790 mm |
Technical Specifications
| Model | Capacity | Lift | Lifting Speed | Lifting Power | Motor Speed | Phases | Voltage | Frequency | Trolley Power | Trolley Motor Speed | Travel Speed | Phases | Voltage | Frequency | I-Beam Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD35-16 | 35 t | 3 / 9 m | 0.7 m/min | 3.0 kW × 2 | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.75 kW × 2 | 1440 r/min | 11 / 21 m/min | 3-phase | 220–440 V | 50/60 Hz | 150–220 mm |
Dimensions
HHBD35-16 Dimensional Drawing
| Model | H | A | B | D | F | Q | K | L | M | N | J | I | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD35-16 | 1790 | 860 | 430 | 1600 | 990 | 440 | Ø200 | 140 | 235 | 135 | Ø100 | Ø100 | Ø11.2 |
Dimensions: All dimensional values are in millimeters unless otherwise stated. Confirm the required voltage, lifting height, travel speed and I-beam flange width before ordering.
Typical Applications
Suitable for heavy manufacturing, machinery assembly, fabrication plants, warehouses and other industrial operations requiring controlled lifting and powered travel of high-capacity loads.
