1T Electric Chain Hoist
A compact electric chain hoist for controlled vertical lifting in workshops, production facilities, warehouses and material-handling systems. Available in hook-suspension, manual-trolley and electric-trolley configurations shown in the technical tables below.
Upload the main image for the 1T electric chain hoist here.
Product Overview
| Product | Electric Chain Hoist |
|---|---|
| Rated Capacity | 1 T |
| Suspension Options | Hook suspension, manual trolley or electric trolley, subject to the selected configuration |
| Control | Low-voltage pendant control |
| Application | Industrial lifting and material handling |
Key Features
Aluminum Alloy Housing
A lightweight, rigid enclosure with cooling fins supports efficient heat dissipation during demanding lifting work.
Fail-Safe Braking
The electromagnetic braking system engages immediately when power is interrupted to help hold the suspended load securely.
Upper and Lower Limit Protection
Limit switches stop lifting or lowering automatically at the travel limits, helping prevent chain over-travel.
Heat-Treated Load Chain
A high-strength, heat-treated load chain is designed for reliable service in industrial environments.
Forged Safety Hook
The lower hook rotates through 360 degrees and includes a safety latch for easier, safer load attachment.
Low-Voltage Pendant Control
A 24 V/36 V control circuit and water-resistant push-button pendant improve operator protection.
Technical Parameters & Dimensions
The following data has been transcribed from the original 1 T reference charts. Dimensions are in millimetres unless otherwise stated.
HHBD01-01

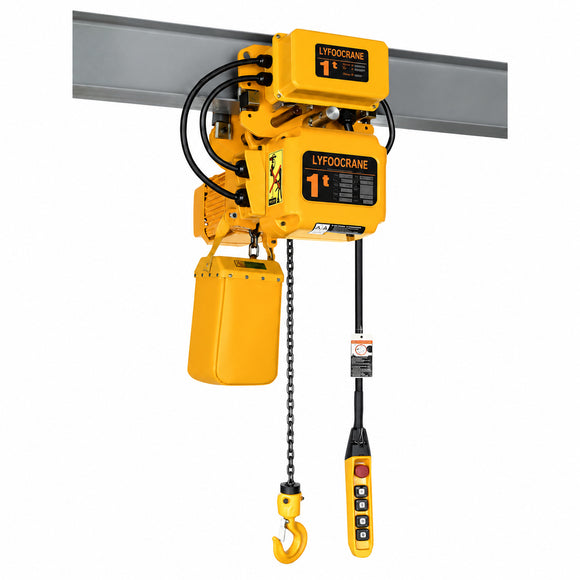

Rated Capacity: 1 THHBD01-01 product image
HHBD01-01 dimensional drawing
| Suspension | Capacity (T) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Motor Power (kW) | Motor Speed (r/min) | Phases | Voltage (V) | Frequency (Hz) | Trolley Motor Power (kW) | Trolley Speed (m/min) | I-Beam (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hook | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | - | - | - |
| Manual Trolley | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | - | - | 68-130 |
| Electric Trolley | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 10/20 | 80-160 |
| Suspension | H | A | B | D | E | J | P | I | K | L | N | W | U | R | T | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hook | 600 | 520 | 260 | 300 | 176 | 31 | - | Φ40 | Φ40 | 31 | 24 | - | - | - | - | Φ7.1 |
| Manual Trolley | 635 | 520 | 260 | 300 | 176 | 115 | 220 | Φ31 | Φ40 | 31 | 24 | - | - | - | - | Φ7.1 |
| Electric Trolley | 650 | 520 | 260 | 300 | 176 | - | - | Φ31 | Φ40 | 31 | 24 | 206 | 111 | 142 | 231 | Φ7.1 |
HHBD01-02

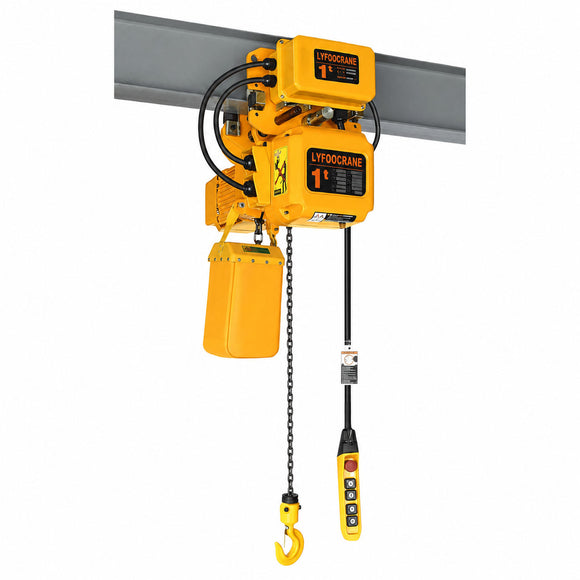

Rated Capacity: 1 THHBD01-02 product image
HHBD01-02 dimensional drawing
| Suspension | Capacity (T) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Motor Power (kW) | Motor Speed (r/min) | Phases | Voltage (V) | Frequency (Hz) | Trolley Motor Power (kW) | Trolley Speed (m/min) | I-Beam (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hook | 1 | 3/9 | 3.9 | 0.75 | 1440 | 3 | 220-440 | 50/60 | - | - | - |
| Manual Trolley | 1 | 3/9 | 3.4 | 0.75 | 1440 | 3 | 220-440 | 50/60 | - | - | 68-130 |
| Electric Trolley | 1 | 3/9 | 3.4 | 0.75 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 10/20 | 80-160 |
| Suspension | H | A | B | D | E | J | K | L | N | U | W | R | T | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hook | 670 | 460 | 230 | 280 | 205 | - | Φ40 | 31 | 24 | - | - | - | - | Φ6.3 |
| Manual Trolley | 640 | 460 | 230 | 280 | 205 | Φ30 | Φ40 | 31 | 24 | 115 | 220 | - | - | Φ6.3 |
| Electric Trolley | 640 | 460 | 230 | 280 | 205 | Φ31 | Φ40 | 31 | 24 | 111 | 206 | 142 | 230 | Φ6.3 |
Custom Configuration Available
Contact us with the required capacity, lifting height, power supply, beam size and operating conditions for model confirmation.
