10-Ton Electric Chain Hoist
This 10-ton electric chain hoist is available with either top-hook suspension for fixed lifting points or a motorized trolley for powered travel along an I-beam. Both configurations provide a 2.8 m/min lifting speed and use twin 3.0 kW lifting motors for controlled heavy-load handling.
10-Ton Hoist without Trolley

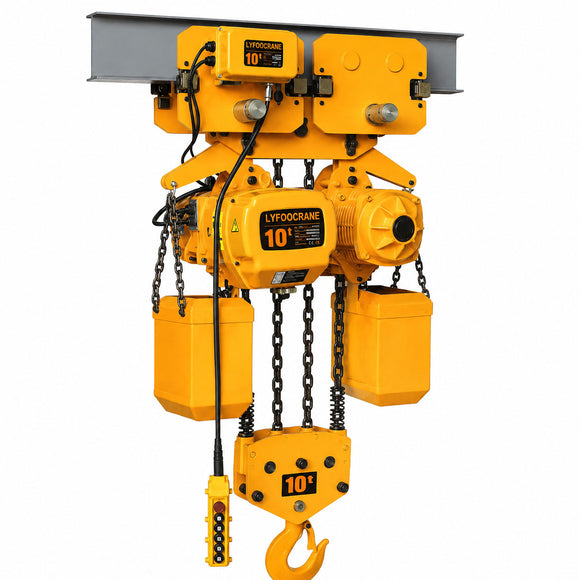

10-Ton Hoist with Motorized Trolley
10-Ton Lifting CapacityDesigned for demanding industrial lifting and heavy material-handling applications.
2.8 m/min Lifting SpeedProvides steady vertical movement for controlled handling and positioning.
Two Mounting ConfigurationsChoose top-hook suspension for a fixed lifting point or a motorized trolley for powered beam travel.
Configuration Comparison
| Model | Mounting Configuration | Capacity | Lifting Height | Lifting Speed | Hoist Motor | Trolley Motor | Travel Speed | I-Beam Width | Overall Height (H) |
|---|---|---|---|---|---|---|---|---|---|
| HHBD10-04 | Top Hook Suspension | 10 t | 3 / 9 m | 2.8 m/min | 3.0 kW × 2 | — | — | — | 1400 mm |
| HHBD10-04 | Motorized Trolley | 10 t | 3 / 9 m | 2.8 m/min | 3.0 kW × 2 | 0.75 kW | 10 m/min | 150–220 mm | 1200 mm |
Technical Specifications
| Configuration | Model | Capacity | Lift | Lifting Speed | Hoist Power | Hoist Motor Speed | Hoist Motor | Voltage | Frequency | Trolley Power | Trolley Motor Speed | Travel Speed | Trolley Motor | Trolley Voltage | Trolley Frequency | I-Beam Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Hook Suspension | HHBD10-04 | 10 t | 3 / 9 m | 2.8 m/min | 3.0 kW × 2 | 1440 r/min | 3-phase | 220–440 V | 50 Hz | — | — | — | — | — | — | — |
| Motorized Trolley | HHBD10-04 | 10 t | 3 / 9 m | 2.8 m/min | 3.0 kW × 2 | 1440 r/min | 3-phase | 220–440 V | 50 Hz | 0.75 kW | 1440 r/min | 10 m/min | 3-phase | 220–440 V | 50 Hz | 150–220 mm |
Dimensions
Top Hook Suspension – Dimensional Drawing
Motorized Trolley – Dimensional Drawing
| Configuration | Model | H | A | B | D | E | I | J | K | L | M | N | P | Q | R | T | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Hook Suspension | HHBD10-04 | 1400 | 630 | 315 | — | 890 | Ø90 | 70 | Ø90 | 65 | 107 | 50 | — | — | — | — | Ø11.2 |
| Motorized Trolley | HHBD10-04 | 1200 | 630 | 315 | 860 | 430 | Ø54 | Ø54 | Ø90 | 65 | 85 | 50 | 726 | 430 | 142 | 231 | Ø11.2 |
Dimensions: All dimensional values are in millimeters unless otherwise stated. “—” indicates that the corresponding item does not apply to that configuration. Confirm the required suspension method, voltage, lifting height and I-beam flange width before ordering.
Typical Applications
Suitable for heavy-duty workshops, manufacturing plants, warehouses, assembly operations and other industrial applications requiring controlled lifting of loads up to 10 tons.
