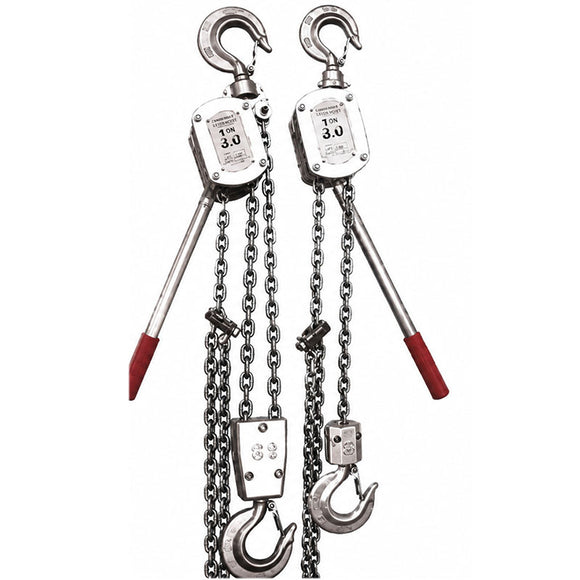

Aluminum Alloy Lever Chain Hoist
The Aluminum Alloy Lever Chain Hoist is a lightweight manual lifting and pulling tool designed for applications where portability, compact size and controlled load positioning are important. Its aluminum alloy housing helps reduce overall weight while maintaining the strength required for demanding lifting, tensioning and pulling operations.
Product Overview
Built with a high-strength aluminum alloy body and alloy steel load chain, this lever hoist combines reduced weight with dependable mechanical performance. It is suitable for lifting, pulling, positioning and tensioning work where electrical power is unavailable or where a compact manual lifting tool is preferred.
The short operating handle and two-stage transmission help reduce operating effort, while the rotating handle design provides greater flexibility when working in confined spaces.
Key Features
- Lightweight aluminum alloy housing for easier transport and handling
- High-strength alloy steel load chain
- Compact body suitable for confined working areas
- Two-stage transmission helps reduce manual operating effort
- 360° rotating handle allows flexible operation from different positions
- Free-chain mechanism allows faster unloaded chain adjustment
- Fully enclosed self-adjusting braking system
- Precise load positioning for controlled lifting and tensioning
- Available in 3-ton and 6-ton configurations
Technical Specifications
| Specification | 3 Ton | 6 Ton – Clevis Type | 6 Ton – Hook Type |
|---|---|---|---|
| Rated Capacity (t) | 3 | 6 | 6 |
| Standard Lift / Pulling Length (m) | 1.5 | 1.5 | 1.5 |
| Test Load (kN) | 36.8 | 73.5 | 73.5 |
| Lever Pull at Rated Load (N) | 340 | 360 | 360 |
| Load Chain Diameter (mm) | 7 | 7 | 7 |
| Number of Load Chain Falls | 1 | 2 | 2 |
| Minimum Hook-to-Hook Distance (mm) | 420 | 500 | 535 |
| Net Weight (kg) | 9.5 | 16.5 | 16.3 |
| Dimension A (mm) | 180 | 180 | 180 |
| Dimension B (mm) | 106 | 106 | 106 |
| Dimension C (mm) | 132 | 155 | 175 |
| Lever Length D (mm) | 450 | 450 | 450 |
| Dimension E (mm) | 31 | 45 | 39 |
| Dimension I (mm) | 45 | 24 | 55 |
| Additional Weight per Extra Meter (kg) | 1.05 | 2.18 | 2.18 |
Standard lifting length is 1.5 m. Longer chain lengths can be supplied according to application requirements. Specifications may be updated as product designs are improved.
