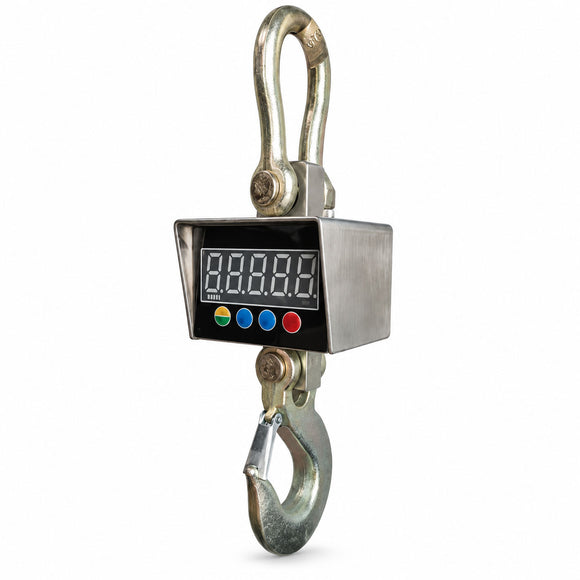

ZST Stainless-Steel Waterproof Crane Scale

A waterproof electronic crane scale featuring a stainless-steel housing, a clear dual-color LED display and lifting capacities from 1 to 10 metric tons.

Technical Specifications

Accuracy Class	Class III, compliant with GB/T 11883-2002
Operating Time per Charge	Approximately 60 hours
Safe Overload	150% of full-scale capacity
Ultimate Overload	300% of full-scale capacity
Operating Temperature	-25°C to +50°C
Relative Humidity	≤90% RH
Display	1.8-inch LED display
Stabilization Time	Less than 5 seconds
Remote-Control Range	10–15 m

Models and Parameters

Dimensions

Dimensional drawing showing measurements A, B, C, D and E.

Capacity	A	B	C	D	E
1 t	400 mm	70 mm	32 mm	180 mm	125 mm
2 t	430 mm	70 mm	36 mm	180 mm	125 mm
3 t	580 mm	143 mm	49 mm	180 mm	125 mm
5 t	580 mm	130 mm	53 mm	180 mm	125 mm
10 t	610 mm	133 mm	62 mm	180 mm	125 mm

Optional Accessories

Handheld Printer

Desktop Printing Indicator

Large Remote Display

Handheld Display

Bluetooth Module

Optional accessories may vary according to the selected configuration.
