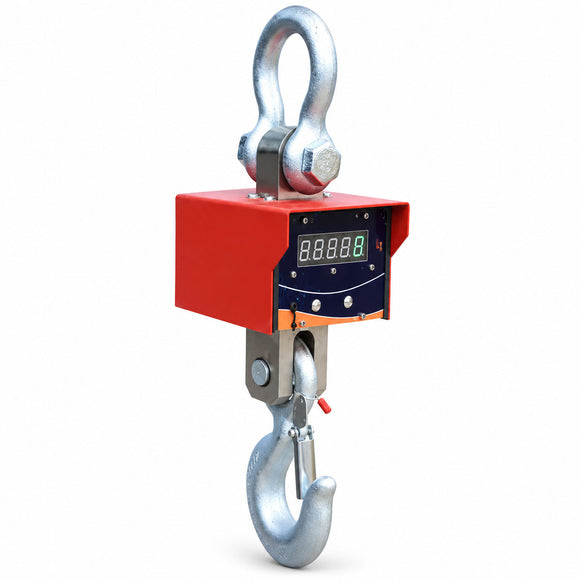

ZS Rotating-Hook Industrial Crane Scale (15T ~50T)

Capacity: 5T

ZS Rotating-Hook Industrial Crane Scale

Heavy-duty direct-view crane scale featuring a rotating-hook configuration, dual-color LED display and capacities ranging from 15 to 50 metric tons.

ZS rotating-hook industrial crane scale

Technical Specifications

Accuracy Class Class III, compliant with GB/T 11883-2002
Operating Time per Charge Approximately 60 hours
Safe Overload 150% of full-scale capacity
Ultimate Overload 300% of full-scale capacity
Operating Temperature -25°C to +50°C
Relative Humidity ≤90% RH
Display 1.2-inch LED digital display
Stabilization Time Less than 5 seconds
Remote-Control Range 10–15 m

Models and Parameters

Capacity Division Minimum Load Overload Coefficient Display Battery Remote Control Charger Housing Net Weight
15 t 5 kg 80 kg 3d 1.2-inch red/green dual-color display 7.4 V / 4.5 Ah lithium battery Infrared 8.4 V / 1 A Steel 41 kg
20 t 5 kg 100 kg 3d 1.2-inch red/green dual-color display 7.4 V / 4.5 Ah lithium battery Infrared 8.4 V / 1 A Steel 60 kg
30 t 5 kg 150 kg 3d 1.2-inch red/green dual-color display 7.4 V / 4.5 Ah lithium battery Infrared 8.4 V / 1 A Steel 100 kg
50 t 10 kg 200 kg 3d 1.8-inch red/green dual-color display 7.4 V / 4.5 Ah lithium battery Radio frequency 8.4 V / 1 A Steel 255 kg

Dimensions

ZS rotating-hook crane scale dimensional drawing

Dimensional drawing showing measurements A, B, C, D and E.

Capacity A B C D E
15 t 880 mm 115 mm 60 mm 251 mm 190 mm
20 t 970 mm 155 mm 80 mm 251 mm 190 mm
30 t 1090 mm 160 mm 105 mm 251 mm 190 mm
50 t 1550 mm 210 mm 160 mm 351 mm 251 mm

Optional Accessories

Optional handheld printer Handheld Printer
Optional desktop printing indicator Desktop Printing Indicator
Optional large remote display Large Remote Display
Optional handheld display Handheld Display
Optional Bluetooth module Bluetooth Module

Optional accessories may vary according to the selected configuration.
