LYFOOCRANE Wall-Mounted Jib Crane
A compact workstation lifting system that mounts to a suitable wall or structural column, providing efficient local load handling without occupying valuable floor space.
Product Overview

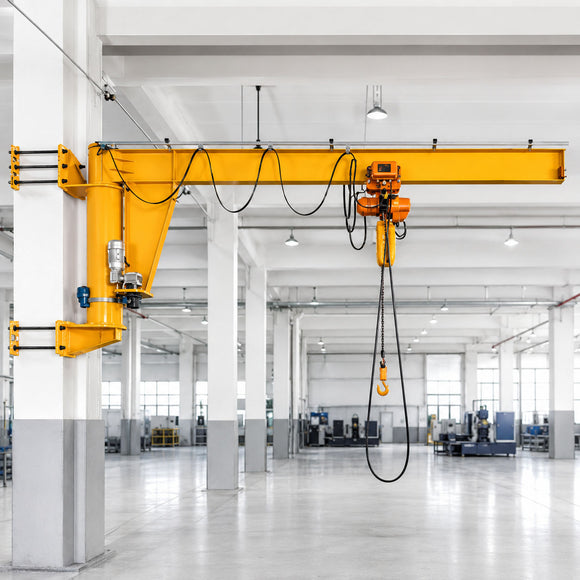

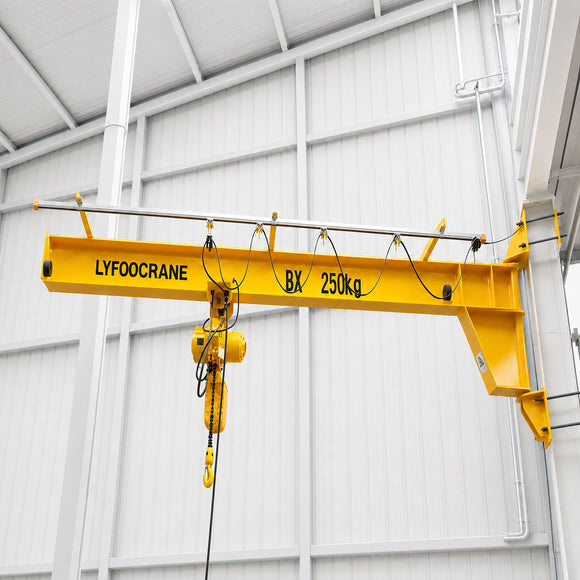

The LYFOOCRANE wall-mounted jib crane consists of a structural mounting assembly, rotating cantilever beam, trolley, and electric hoist. It can be attached to a suitably engineered steel column, reinforced concrete column, wall, or independent supporting structure at the required installation height.
Designed for frequent short-distance lifting, it provides practical coverage around an individual workstation while keeping the floor area clear. Loads can be lifted, moved along the beam, and positioned through the crane’s slewing arc. Pendant push-button control, radio remote control, and application-specific hoist options are available.
Key Benefits
- No floor-mounted pillar: keeps the work area open for equipment, vehicles, and personnel.
- Efficient workstation coverage: supports lifting, horizontal trolley travel, and load positioning within the slewing area.
- Strong bolted mounting: designed for secure attachment to an approved load-bearing structure.
- Compact steel construction: combines low self-weight with a practical, easy-to-maintain layout.
- Flexible configuration: capacity, beam length, lifting height, hoist type, speed, controls, and electrical supply can be matched to the project.
Reference Technical Data
| Parameter | Unit | Reference Specification |
|---|---|---|
| Rated capacity | t | 0.25, 0.5, 1, 2, 3, or 5 |
| Beam length | mm | 2,000–6,000 |
| Lifting height | mm | 2,000–6,000 |
| Lifting speed | m/min | 8 or 8/0.8 dual speed |
| Trolley travel speed | m/min | 10 or 20 |
| Slewing speed | r/min | Approx. 0.46–0.76, configuration-dependent |
| Typical slewing range | degrees | Up to 180°; confirm for the selected mounting arrangement |
| Duty class | — | A3 reference |
| Power supply | — | 380 V, 50 Hz, 3-phase; other standards available |
| Working temperature | °C | −20 to +42 |
| Control | — | Pendant push-button or radio remote control |
Specifications are reference values. Final capacity, outreach, mounting loads, dimensions, speeds, duty class, and electrical requirements must be confirmed for the selected configuration and installation site.
Safety and Control Options
- Overload protection
- Upper lifting limit switch
- Emergency stop
- Electrical phase protection
- Undervoltage and overcurrent protection
- Travel limit devices and buffers
- Controlled braking
- Variable-frequency motion where specified
Common Applications
Assembly lines, machining stations, maintenance areas, workshops, warehouses, docks, storage facilities, loading zones, and other work areas requiring localized lifting without a floor-mounted support column.
Configure Your LYFOOCRANE Wall Jib Crane
For an accurate recommendation, provide the load capacity, beam length, lifting height, required slewing angle, duty cycle, mounting-structure details, installation drawings, and local power supply.
