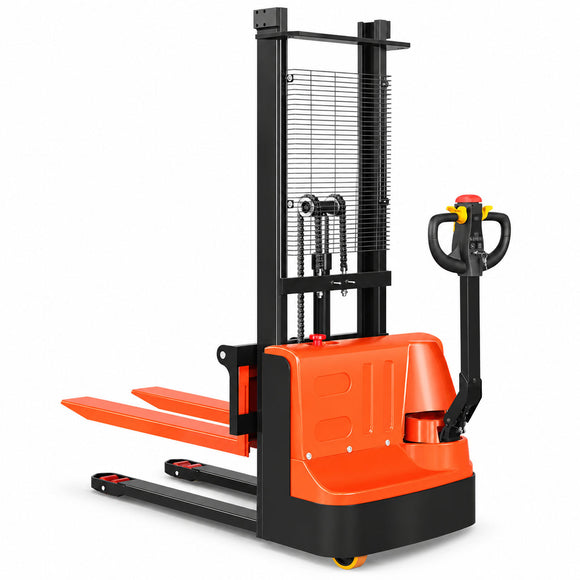

Walkie Electric Pallet Stacker
A compact pedestrian-operated electric stacker for pallet transport and stacking in warehouses, workshops, retail stockrooms, and other indoor material-handling areas. Electric travel and powered lifting help reduce manual effort, while the walk-behind design supports precise maneuvering in confined spaces.
Product Overview
- Available in 1.5 ton and 2 ton rated capacities
- Lift-height options from 1,600 to 3,000 mm
- Electric travel and hydraulic lifting
- Compact 1,900 × 800 mm overall footprint
- PU wheels for use on suitable industrial floors
- Designed for compatible open-bottom pallets
Model Configurations
| Rated Capacity | Lift Height | Service Weight (Including Battery) |
Lowered Mast Height |
|---|---|---|---|
| 1.5 t | 1,600 mm | 410 kg | 2,060 mm |
| 2,000 mm | 445 kg | 1,560 mm | |
| 2,500 mm | 480 kg | 1,860 mm | |
| 3,000 mm | 506 kg | 2,060 mm | |
| 2 t | 1,600 mm | 430 kg | 2,060 mm |
| 2,000 mm | 470 kg | 1,560 mm | |
| 2,500 mm | 500 kg | 1,860 mm | |
| 3,000 mm | 530 kg | 2,060 mm |
General Specifications
| Rated Load Center | 550 mm | Mast Section | 120 × 60 × 8 mm |
|---|---|---|---|
| Overall Length | 1,900 mm | Overall Width | 800 mm |
| Fork Size | 1,150 × 160 × 60 mm | ||
| Fork Outside Width | 640 / 680 mm | Fork Inside Clearance | 310 / 330 mm |
| Lowered Fork Height | 86 mm* | Wheel Material | PU |
| Load Wheel Size | Dia. 80 × 70 mm | Steering Wheel Size | Dia. 210 × 70 mm |
| Drive Motor |
0.75 kW (1.5 t) 1.0 kW (2 t) |
Lift Pump Motor | 2.2 kW |
| Charging Supply Listed | 220 V | ||
Specification note: The source table displays the lowered-fork figure as “860”; it has been presented here as 86 mm, which should be verified before publication. Charger voltage, plug type, battery capacity, mast arrangement, and pallet compatibility should also be confirmed for the destination market.
