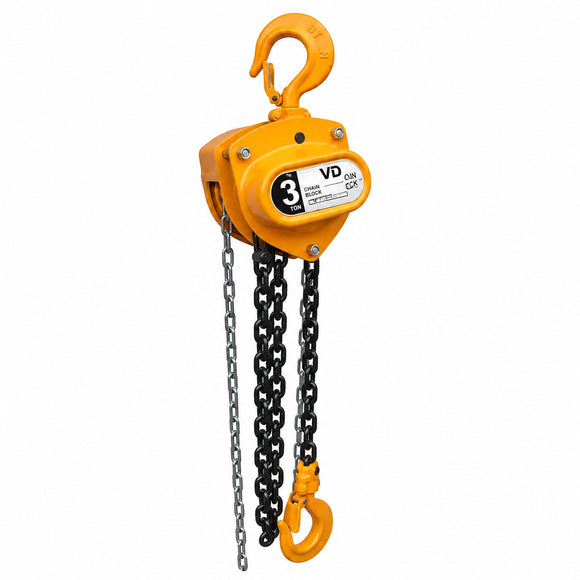

VD Series Double-Bearing Manual Chain Hoist
The VD Series Manual Chain Hoist features a double-bearing design for smoother chain movement and efficient manual lifting. With capacities from 0.5 to 50 tons, it is suitable for equipment installation, maintenance, construction, warehouse handling and other applications where electrical power is unavailable.
Capacity and Operating Specifications
| Model | Capacity | Standard Lift | Test Load | Min. Headroom | Hand Pull | Chain Falls | Chain Dia. |
|---|---|---|---|---|---|---|---|
| VD-1/2 | 0.5 t | 2.5 m | 0.75 t | 270 mm | 225 N | 1 | 6 mm |
| VD-1 | 1 t | 2.5 m | 1.5 t | 270 mm | 309 N | 1 | 6 mm |
| VD-1 1/2 | 1.5 t | 2.5 m | 2.25 t | 368 mm | 343 N | 1 | 8 mm |
| VD-2 | 2 t | 3 m | 3 t | 444 mm | 314 N | 1 | 6 mm |
| VD-3 | 3 t | 3 m | 4.5 t | 486 mm | 343 N | 2 | 8 mm |
| VD-5 | 5 t | 3 m | 7.5 t | 616 mm | 383 N | 2 | 10 mm |
| VD-10 | 10 t | 3 m | 12.5 t | 700 mm | 392 N | 4 | 10 mm |
| VD-20 | 20 t | 3 m | 25 t | 890 mm | 392 N | 8 | 10 mm |
| VD-30 | 30 t | 3 m | 27.5 t | 980 mm | 450 × 2 N | 12 | 10 mm |
| VD-50 | 50 t | 3 m | 62.5 t | 1300 mm | 450 × 2 N | 22 | 10 mm |
Weight and Packaging
| Model | Packed Weight | Packing Size | Extra Weight per 1 m Lift |
|---|---|---|---|
| VD-1/2 | 12 kg | 28 × 21 × 17 cm | 1.6 kg |
| VD-1 | 13 kg | 30 × 24 × 18 cm | 1.6 kg |
| VD-1 1/2 | 20 kg | 34 × 29 × 20 cm | 1.9 kg |
| VD-2 | 17 kg | 33 × 25 × 19 cm | 2.2 kg |
| VD-3 | 28 kg | 38 × 30 × 20 cm | 3 kg |
| VD-5 | 45 kg | 45 × 35 × 24 cm | 4.6 kg |
| VD-10 | 83 kg | 62 × 50 × 28 cm | 9.6 kg |
| VD-20 | 193 kg | 70 × 46 × 75 cm | 19.4 kg |
| VD-30 | — | — | 28.3 kg |
| VD-50 | — | — | 50 kg |
Additional Lift: Longer lifting heights require additional load chain and hand chain. The corresponding additional weight is shown in the table above.
Design Features
- Double-bearing transmission helps provide smooth chain movement and efficient operation.
- Low-alloy structural steel housing provides durable protection for the internal mechanism.
- Grade 80 high-strength load chain is used for dependable lifting performance.
- Twin pawls provide additional braking reliability during lifting and lowering.
- Dual chain guides help maintain stable chain travel through the hoist body.
- Manual operation allows the hoist to be used where electrical power is unavailable.
Typical Applications
Suitable for machinery installation, equipment maintenance, construction, warehouse handling, mining support, agricultural work and vehicle loading or unloading. The manual design is especially useful for outdoor operations and jobsites without access to electrical power.
Ordering Information: Specify the required lifting capacity and lifting height when ordering. For high-capacity models, confirm available headroom, suspension conditions and required operating clearance before selection.
