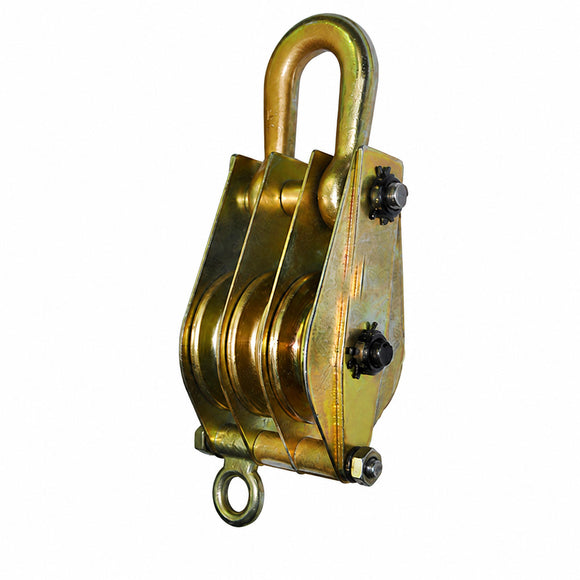

Triple-Sheave Eye-Type Power Line Pulley Block
Product Overview
This triple-sheave power line pulley block features a lifting-eye attachment and is available with working load limits from 3.2 to 50 metric tons. Its multi-sheave arrangement is designed for wire-rope guidance during tower erection, line stringing and equipment lifting.
Product Features
- Precision-cast steel sheaves provide greater strength and durability than conventional cast-iron sheaves.
- The hinge components are forged from high-quality low-carbon alloy steel and heat-treated for improved overall strength and service life.
- Heat-treated alloy-steel attachment components provide a compact, lightweight and fatigue-resistant structure.
- The triple-sheave arrangement provides stable wire-rope guidance for higher-capacity lifting and pulling operations.
Applications
Suitable for utility tower erection, overhead conductor stringing, equipment installation and other lifting operations.
Dimensions and Technical Specifications
| Item No. | Working Load Limit (t) |
Test Load (kN) |
H (mm) |
H1 (mm) |
B (mm) |
Lmax (mm) |
Ø (mm) |
Suitable Wire Rope Dia. (mm) |
Maximum Wire Rope Dia. (mm) |
R (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SL-DLD3-HQD3-3.2 | 3.2 | 51.20 | 330 | – | 116 | 128 | 14 | 7.7 | 11 | 23.5 |
| SL-DLD3-HQD3-5 | 5 | 80.00 | 435 | – | 152 | 156 | 20 | 11 | 14 | 28 |
| SL-DLD3-HQD3-8 | 8 | 128.0 | 515 | – | 176 | 185 | 24 | 12.5 | 15.5 | 33 |
| SL-DLD3-HQD3-10 | 10 | 160.0 | 610 | – | 212 | 216 | 28 | 15.5 | 18.5 | 40 |
| SL-DLD3-HQD3-16 | 16 | 224.0 | 680 | – | 236 | 233 | 32 | 17 | 20 | 42 |
| SL-DLD3-HQD3-20 | 20 | 280.0 | 770 | – | 280 | 266 | 36 | 20 | 23 | 47 |
| SL-DLD3-HQD3-32 | 32 | 448.0 | 945 | – | 364 | 305 | 48 | 26 | 28 | 52 |
| SL-DLD3-HQD3-50 | 50 | 700.0 | 1220 | – | 452 | 369 | 56 | 31 | 35 | 64 |
