Three-Leg Chain Sling Assembly
This three-leg chain sling assembly is designed for lifting loads from three attachment points. Product selection and use should comply with GB/T 20652-2006.
The sling assembly is manufactured with a 4:1 design safety factor. Select the appropriate working load limit according to the actual sling angle.
| Item No. |
Chain Diameter (mm) |
WLL (t) |

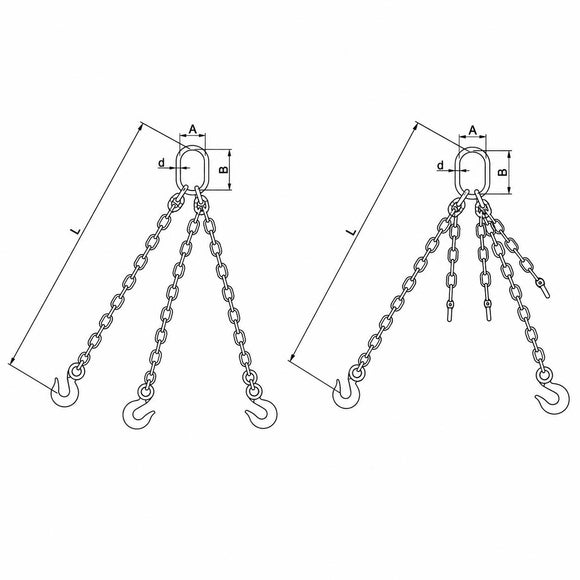

Main Link A × B × d (mm) |
Chain Weight (kg/m) |
|
|---|---|---|---|---|---|
| α ≤ 45° | 45° < α ≤ 60° | ||||
| SL-LSJ1-6 | 6 | 2.2 | 1.6 | 20 × 140 × 70 | 0.79 |
| SL-LSJ1-8 | 8 | 4.2 | 3 | 22 × 160 × 90 | 1.38 |
| SL-LSJ1-10 | 10 | 6.6 | 4.7 | 25 × 178 × 90 | 2.2 |
| SL-LSJ1-13 | 13 | 11 | 7.9 | 32 × 220 × 110 | 3.8 |
| SL-LSJ1-16 | 16 | 16.3 | 11.7 | 38 × 270 × 140 | 5.63 |
| SL-LSJ1-20 | 20 | 23.5 | 16.8 | 50 × 350 × 190 | 8.6 |
| SL-LSJ1-22 | 22 | 31.5 | 22.5 | 50 × 350 × 190 | 10.2 |
| SL-LSJ1-26 | 26 | 42 | 30 | 57 × 405 × 200 | 14 |
| SL-LSJ1-32 | 32 | 66 | 47 | 72 × 460 × 250 | 22.29 |
Selection Note:
The working load limit decreases as the sling angle increases. Confirm the load weight, lifting-point arrangement and operating angle before selecting the sling size.
