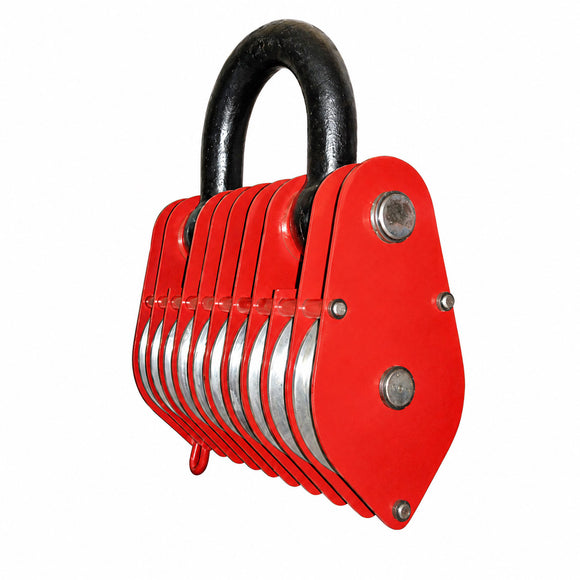

Ten-Sheave Pulley Block with Lifting Eye
This ten-sheave pulley block features an integrated lifting eye and is designed for high-capacity wire-rope lifting and pulling applications. Its ten-sheave configuration provides efficient wire-rope routing in heavy-duty lifting systems.
Product Features
- The upper attachment is manufactured from high-quality alloy steel and designed with a 3:1 safety factor.
- Available with cast-iron, cast-steel or hot-rolled steel sheaves.
- Sheave bearing options include composite wear-resistant bushings, solid bronze bushings, ball bearings and needle bearings.
- Additional working-load capacities can be manufactured to order.
Dimensions and Technical Specifications
| Item No. | WLL (t) |
Test Load (kN) |
Outside Dimensions (mm) | Wire Rope Diameter (mm) | Eye Opening R (mm) |
Weight (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| H | B | Lmax | Φ | Recommended | Max. | |||||
| SL-HQD10-200 | 200 | 2500 | 1500 | 460 | 1110 | 60 | 31 | 35 | 240 | 1650 |
| SL-HQD10-250 | 250 | 3125 | 1600 | 510 | 1305 | 52 | 34 | 36 | 335 | 2100 |
| SL-HQD10-320 | 320 | 4000 | 1750 | 570 | 1605 | 57 | 35 | 38 | 389 | 2800 |
WLL = Working Load Limit. All dimensions and technical values are based on the source product data.
