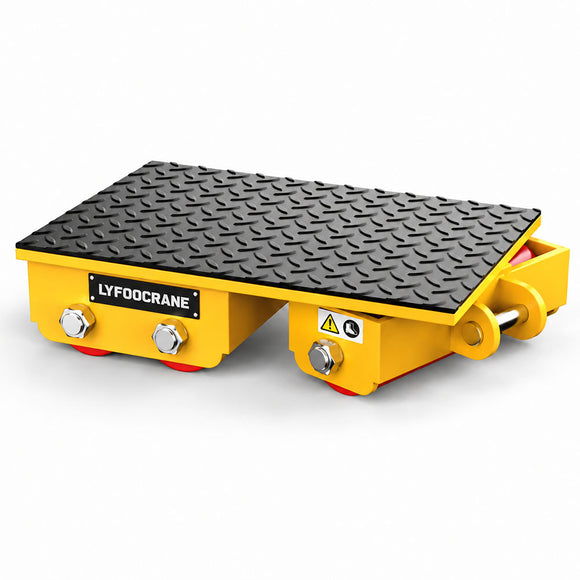

Heavy-Duty Steerable Machine Mover
Designed for controlled movement and precise positioning of heavy machinery, the CRD Series steerable machine mover combines a rotating load platform with durable rollers for workshops, factories, warehouses, and equipment-installation projects.
Recommended ratio: 4:3
Move Heavy Equipment with Better Control
The steerable front section helps operators guide machinery through demanding indoor work areas. Multiple roller configurations distribute the load, while the compact body fits beneath equipment where space is limited.
- Maximum capacities from 6 to 12 metric tons
- Rotating top platform for directional control
- Four to eight heavy-duty rollers, depending on model
- Low 110 mm profile for easier equipment placement
- Suitable for machinery relocation and installation
Models & Specifications
| Model | Maximum Capacity | Recommended Working Load | Number of Rollers | Roller Size | Overall Dimensions (L × W × H) | Net Weight |
|---|---|---|---|---|---|---|
| CRD6 | 6 metric tons | 3 metric tons | 4 | Ø68 × 75 mm | 385 × 263 × 110 mm | 17 kg |
| CRD7 | 7 metric tons | 3.5 metric tons | 5 | Ø68 × 75 mm | 385 × 263 × 110 mm | 22.3 kg |
| CRD8 | 8 metric tons | 4 metric tons | 6 | Ø68 × 75 mm | 470 × 263 × 110 mm | 24.3 kg |
| CRD10 | 10 metric tons | 5 metric tons | 7 | Ø68 × 75 mm | 470 × 263 × 110 mm | 34 kg |
| CRD12 | 12 metric tons | 6 metric tons | 8 | Ø68 × 75 mm | 470 × 263 × 110 mm | 33 kg |
Note: Capacity values are stated in metric tons. Select and operate the mover according to the recommended working load and applicable site-safety requirements.
Typical Applications
Machine Installation
Factory Equipment Relocation
Warehouse Maintenance
Workshop Positioning
Need Help Choosing the Right Model?
Tell us the equipment weight, dimensions, floor conditions, and required moving distance. LYFOOCRANE can help you select a suitable machine mover and compatible handling equipment.
