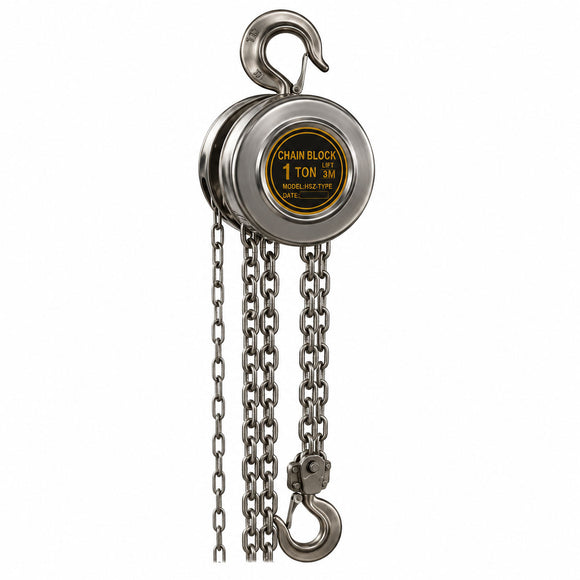

Stainless Steel Manual Chain Hoist
The stainless steel manual chain hoist is designed for lifting operations where corrosion resistance, cleanliness and reliable manual operation are important. Manufactured from 304 stainless steel, it combines a compact structure with easy maintenance and smooth hand-chain operation, making it suitable for indoor, outdoor and demanding industrial environments.
Key Features
- 304 stainless steel construction
- Good resistance to rust and corrosion
- Suitable for high- and low-temperature working environments
- Wear-resistant construction for extended service life
- Clean and easy-to-maintain surface
- Manual operation requires no electrical power supply
- Compact body and relatively low hand-chain pulling force
- Available in capacities from 0.5 to 50 metric tons
304 Stainless Steel Construction
The hoist is manufactured using 304 stainless steel to provide improved resistance to rust, corrosion and environmental exposure. This material also offers good durability across a wide temperature range and is easier to keep clean than conventional painted steel equipment.
Its corrosion-resistant construction makes it particularly useful where lifting equipment may be exposed to moisture, frequent cleaning or corrosive working conditions.
Compact Manual Lifting Design
The manual chain drive provides controlled lifting without requiring an external electrical power source. The compact design, relatively low self-weight and moderate hand-chain pull make the hoist convenient for installation, maintenance and general material-handling work.
The stainless steel construction also helps simplify cleaning and routine maintenance, making the hoist a practical choice where equipment hygiene and corrosion resistance are important.
Technical Specifications
| Model | HSZ-0.5A | HSZ-1A | HSZ-1.5A | HSZ-2A | HSZ-3A | HSZ-5A | HSZ-7.5A | HSZ-10A | HSZ-15A | HSZ-20A | HSZ-30A | HSZ-50A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | 50 |
| Standard Lift (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Proof Load (t) | 0.63 | 1.25 | 1.88 | 2.5 | 3.75 | 6.25 | 9.4 | 12.5 | 18.75 | 25.0 | 37.5 | 62.5 |
| Hand Chain Pull at Rated Load (N) | 231 | 309 | 320 | 320 | 360 | 414 | 420 | 420 | 430 | 420 × 2 | 450 × 2 | 450 × 2 |
| Number of Load Chain Falls | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 6 | 8 | 12 | 22 |
| Load Chain Diameter (mm) | 5 | 6 | 7.1 | 8 | 7.1 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Dimension A (mm) | 115 | 143 | 148 | 152 | 148 | 181 | 181 | 181 | 181 | 192 | 330 | 410 |
| Dimension B (mm) | 136 | 156 | 182 | 198 | 182 | 266 | 365 | 365 | 485 | 630 | 670 | 965 |
| Dimension C (mm) | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 798 | 920 | 890 | 1000 | 1950 |
| Dimension D (mm) | 25 | 27 | 34 | 36 | 38 | 48 | 57 | 57 | 84 | 84 | 84 | 130 |
| Net Weight (kg) | 8 | 11 | 17 | 18 | 22 | 45 | 52 | 70 | 125 | 162 | 228 | 1085 |
| Additional Weight per Extra Meter of Lift (kg) | 1.5 | 1.8 | 2.1 | 2.3 | 4.2 | 5.6 | 7.3 | 9.8 | 14.2 | 19.6 | 28.3 | 50 |
Dimensions
Product Selection
Select the appropriate model according to the required rated capacity, lifting height and operating conditions. All models are listed with a standard 3-meter lifting height, while additional lifting height can be configured according to project requirements.
When the hoist will be used in wet, corrosive or frequently cleaned environments, confirm the required stainless steel configuration and operating conditions before ordering.
