LYFOOCRANE CORROSION-RESISTANT WINCHES

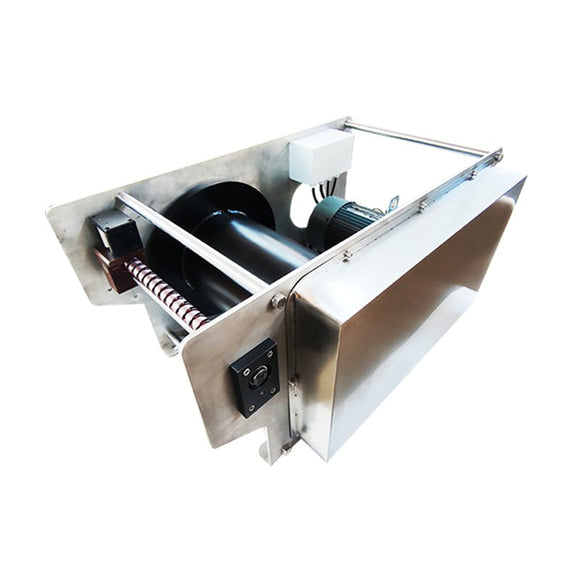

Stainless Steel Electric Industrial Winch with Level-Wind Option
A corrosion-resistant electric winch for clean, humid or chemically exposed facilities, available in 304 or 316 stainless steel configurations.
Designed Around the Working Duty
A corrosion-resistant electric winch for clean, humid or chemically exposed facilities, available in 304 or 316 stainless steel configurations. Final gearing, drum, braking, controls and protection are configured for the project.
Material selected for chemical exposure.
Guided rope distribution.
Easier cleaning in sanitary areas.
Interfaces and protection by project.
Reference Specifications
| Models | First-Layer Speed | Average Speed | Wire Rope | Standard Rope | Drum Capacity | Motor | Weight | Duty Class |
|---|---|---|---|---|---|---|---|---|
| 500 / 1,000 kg | 5.7 m/min | 6.8 m/min | 6 / 10 mm | 14 / 16 m | 50 / 60 m | 0.75 / 1.4 kW | 60 / 140 kg | Published M4 |
Typical Applications
Food processing · pharmaceutical plants · laboratories · washdown areas · marine facilities
Engineering Note
Stainless grade, weld treatment, fasteners and surface finish must match the actual corrosion and hygiene requirement. Stainless steel is not immune to chlorides or all acids. M4 duty, IP rating, CE conformity and higher-capacity claims must be confirmed for the delivered model.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
