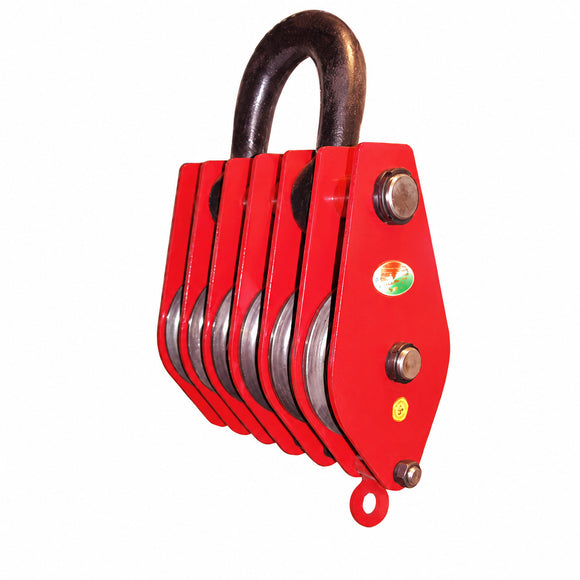

Six-Sheave Pulley Block with Lifting Eye
This six-sheave pulley block features an integrated lifting eye and is designed for high-capacity wire-rope lifting and pulling applications. Its six-sheave configuration provides efficient wire-rope routing in heavy-duty lifting systems.
Product Features
- The upper attachment is manufactured from high-quality alloy steel and designed with a 3:1 safety factor.
- Available with cast-iron, cast-steel or hot-rolled steel sheaves.
- Sheave bearing options include composite wear-resistant bushings, solid bronze bushings, ball bearings and needle bearings.
- Additional working-load capacities can be manufactured to order.
Dimensions and Technical Specifications
| Item No. | WLL (t) |
Test Load (kN) |
Outside Dimensions (mm) | Wire Rope Diameter (mm) | Eye Opening R (mm) |
Weight (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| H | B | Lmax | Φ | Recommended | Max. | |||||
| SL-HQD6-32 | 32 | 448 | 770 | 236 | 430 | 32 | 17 | 20 | 63 | 110 |
| SL-HQD6-50 | 50 | 700 | 965 | 316 | 520 | 45 | 23 | 25 | 81 | 250 |
| SL-HQD6-80 | 80 | 1040 | 1230 | 405 | 620 | 59 | 28 | 31 | 90 | 460 |
| SL-HQD6-100 | 100 | 1300 | 1275 | 460 | 670 | 60 | 31 | 35 | 110 | 630 |
WLL = Working Load Limit. All dimensions and technical values are based on the source product data.
