Single-Sheave Snatch Block with Link Attachment

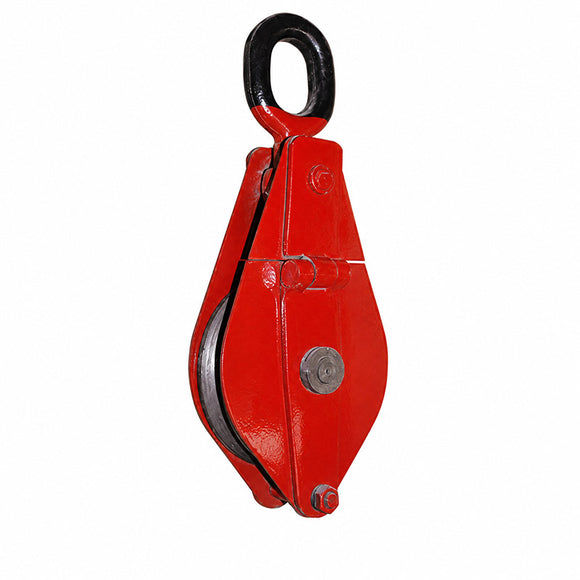

This single-sheave snatch block features an opening side plate for quick wire-rope installation and removal. The upper link attachment provides a secure connection point for lifting and pulling applications.
Product Features
- The attachment is forged from high-quality alloy steel and designed with a 3:1 safety factor.
- Available with cast-iron, cast-steel or hot-rolled steel sheaves.
- Sheave bearing options include composite wear-resistant bushings, solid bronze bushings, ball bearings and needle bearings.
- Additional working-load capacities can be manufactured to order.
Dimensions and Technical Specifications
| Item No. | WLL (t) |
Test Load (kN) |
Outside Dimensions (mm) | Wire Rope Diameter (mm) | Link Cavity R1 (mm) |
Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|---|
| H | B | Lmax | Recommended | Max. | |||||
| SL-HQLK1-0.32 | 0.32 | 5.12 | 230 | 90 | 48 | — | — | 10 | 1.33 |
| SL-HQLK1-0.5 | 0.5 | 8 | 260 | 98 | 61.5 | 6.2 | 7.7 | 11 | 1.53 |
| SL-HQLK1-1 | 1 | 16 | 318 | 116 | 70.5 | 7.7 | 11 | 14 | 3 |
| SL-HQLK1-2 | 2 | 32 | 405 | 152 | 88 | 11 | 14 | 19 | 5.24 |
| SL-HQLK1-3.2 | 3.2 | 51.2 | 470 | 176 | 101 | 12.5 | 15.5 | 21 | 9 |
| SL-HQLK1-5 | 5 | 80 | 570 | 212 | 117 | 15.5 | 18.5 | 26.5 | 15.28 |
| SL-HQLK1-8 | 8 | 128 | 730 | 280 | 141 | 20 | 23 | 33.5 | 31 |
| SL-HQLK1-10 | 10 | 160 | 810 | 316 | 159 | 23 | 24.5 | 37.5 | 41.1 |
| SL-HQLK1-16 | 16 | 224 | 1030 | 406 | 185 | 28 | 31 | 50 | 91.1 |
| SL-HQLK1-20 | 20 | 280 | 1165 | 452 | 193 | 31 | 35 | 52.5 | 124.1 |
| SL-HQLK1-32 | 32 | 448 | 1505 | 580 | 240 | 35 | 38 | 110 | 293.5 |
| SL-HQLK1-50 | 50 | 800 | 1665 | 645 | 345 | 44 | 48 | 110 | 570 |
WLL = Working Load Limit. Dimensions and values are based on the source product data.
