Wire Rope Sling Assembly
Model: SL-WCSH Series • Single Leg • For Lifting Applications
Specifications & Dimensions

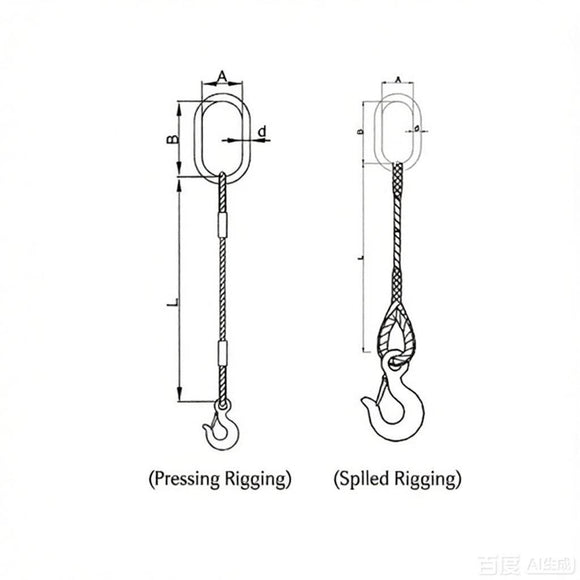

| Model | Wire Dia. (mm) | WLL (KN) | A×B×d (mm) | Hook Type | Hook WLL (T) |
|---|---|---|---|---|---|
| SL-WCSH-6 | 6 | 2.7 | 65×130×16 | US 320A | 0.75 |
| SL-WCSH-7 | 7 | 3.6 | 65×130×16 | US 320A | 0.75 |
| SL-WCSH-8 | 8 | 4.7 | 65×130×16 | US 320A | 0.75 |
| SL-WCSH-9 | 9 | 6 | 65×130×16 | US 320A | 0.75 |
| SL-WCSH-10 | 10 | 7.4 | 65×130×16 | US 320A | 0.75 |
| SL-WCSH-11 | 11 | 8.9 | 65×130×16 | US 320A | 1 |
| SL-WCSH-12 | 12 | 11 | 65×130×16 | US 320A | 1.5 |
| SL-WCSH-13 | 13 | 12 | 65×130×16 | US 320A | 1.5 |
| SL-WCSH-14 | 14 | 14 | 65×130×16 | US 320A | 1.5 |
| SL-WCSH-16 | 16 | 19 | 65×130×16 | US 320A | 2 |
| SL-WCSH-18 | 18 | 24 | 80×150×20 | US 320A | 3 |
| SL-WCSH-20 | 20 | 30 | 80×150×20 | US 320A | 3 |
| SL-WCSH-22 | 22 | 36 | 90×160×24 | US 320A | 5 |
| SL-WCSH-24 | 24 | 42 | 90×160×24 | US 320A | 5 |
| SL-WCSH-26 | 26 | 50 | 90×160×24 | US 320A | 5 |
| SL-WCSH-28 | 28 | 58 | 100×190×28 | US 320A | 7 |
| SL-WCSH-30 | 30 | 66 | 100×190×28 | US 320A | 7 |
| SL-WCSH-32 | 32 | 76 | 100×190×28 | US 320A | 11 |
| SL-WCSH-34 | 34 | 85 | 110×200×32 | US 320A | 11 |
| SL-WCSH-36 | 36 | 96 | 110×200×32 | US 320A | 11 |
| SL-WCSH-38 | 38 | 106 | 120×230×34 | US 320A | 11 |
| SL-WCSH-40 | 40 | 118 | 120×230×34 | US 320A | 15 |
| SL-WCSH-42 | 42 | 130 | 135×250×38 | US 320A | 15 |
| SL-WCSH-44 | 44 | 143 | 135×250×38 | US 320A | 15 |
| SL-WCSH-46 | 46 | 156 | 140×270×42 | US 320A | 22 |
| SL-WCSH-48 | 48 | 170 | 140×270×42 | US 320A | 22 |
| SL-WCSH-50 | 50 | 185 | 140×270×42 | US 320A | 22 |
| SL-WCSH-52 | 52 | 200 | 140×270×42 | US 320A | 30 |
| SL-WCSH-54 | 54 | 215 | 140×270×42 | US 320A | 30 |
| SL-WCSH-56 | 56 | 231 | 160×310×46 | US 320A | 30 |
| SL-WCSH-58 | 58 | 248 | 160×310×46 | US 320A | 30 |
| SL-WCSH-60 | 60 | 266 | 180×330×52 | US 320A | 30 |
Wire Rope Sling Assembly • Model SL-WCSH
Single leg sling. Hook type: US 320A with specified WLL.
