Weighing Pallet Trucks
Our weighing pallet trucks combine pallet handling and real-time weight measurement in one compact unit. Three operating configurations are available to meet different workload, efficiency and budget requirements: manual, semi-electric and fully electric.

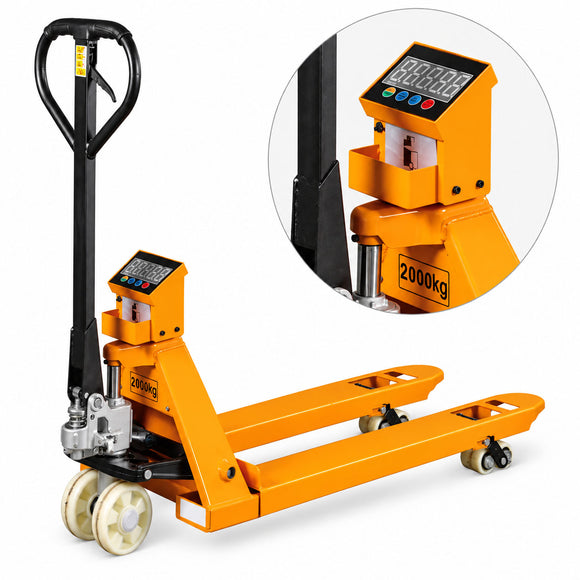

Manual Weighing Pallet Truck
A practical and economical solution that combines manual pallet handling with an integrated electronic weighing system.
- Manual travel and lifting
- 2,000 kg standard capacity
- Optional 3,000 kg capacity
- 7.4 V lithium battery for the display
- Display-only model without printer
Semi-Electric Weighing Pallet Truck
Powered travel reduces the effort required to move loaded pallets, while the hydraulic lifting system remains manually operated.
- Electric travel
- Manual hydraulic lifting
- 2,000 kg standard capacity
- Optional 3,000 kg capacity
- 48 V / 20 Ah lead-acid battery

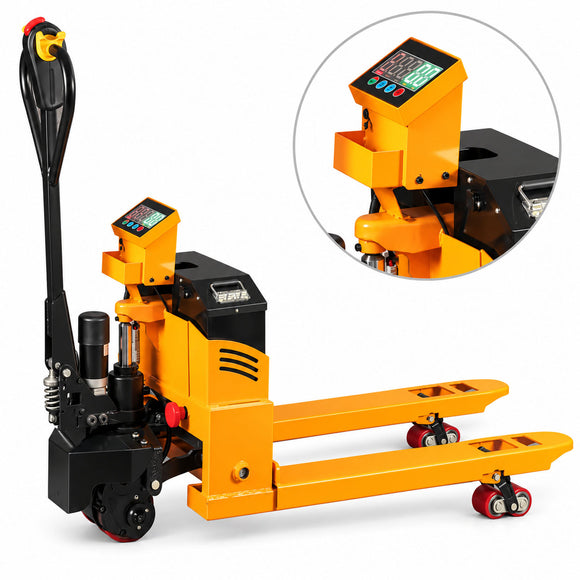

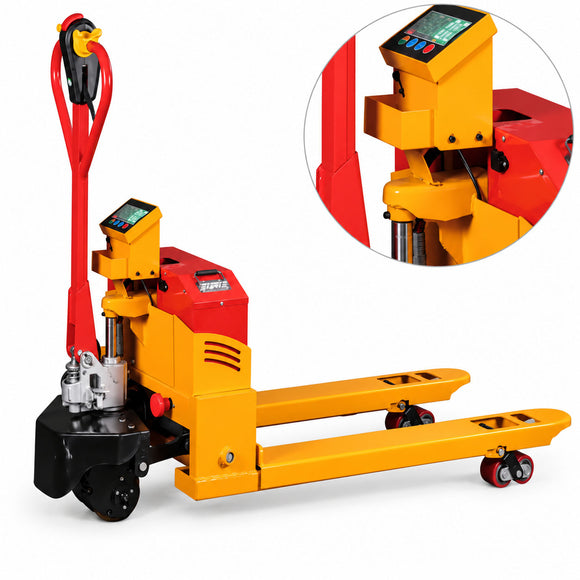

Fully Electric Weighing Pallet Truck
Electric travel and electric lifting provide efficient pallet handling for frequent use and demanding warehouse operations.
- Electric travel and lifting
- 2,000 kg standard capacity
- Optional 3,000 kg capacity
- 48 V / 20 Ah lead-acid battery
- Designed for frequent handling tasks
Model Comparison
| Item | Manual Model | Semi-Electric Model | Fully Electric Model |
|---|---|---|---|
| Travel Operation | Manual | Electric | Electric |
| Lifting Operation | Manual hydraulic | Manual hydraulic | Electric |
| Standard Capacity | 2,000 kg | 2,000 kg | 2,000 kg |
| Optional Capacity | 3,000 kg | 3,000 kg | 3,000 kg |
| Minimum Weighing Load | 10 kg | 20 kg | 20 kg |
| Fork Height | 80–190 mm | 85–190 mm | 85–190 mm |
| Fork Length | 1,150 mm | 1,150 mm | 1,150 mm |
| Overall Fork Width | 570 mm / 700 mm | 570 mm / 700 mm | 570 mm / 700 mm |
| Inside Fork Spacing | 255 mm / 380 mm | 255 mm / 380 mm | 255 mm / 380 mm |
| Single Fork Width | 160 mm | 160 mm | 160 mm |
| Accuracy Class | Class III | Class III | Class III |
| Scale Configuration 2,000 kg model | 0.5 kg × 4,000 divisions | 0.5 kg × 4,000 divisions | 0.5 kg × 4,000 divisions |
| Scale Configuration 3,000 kg model | 0.5 kg × 6,000 divisions | 0.5 kg × 6,000 divisions | 0.5 kg × 6,000 divisions |
| Scale Verification Interval | 0.5 kg | 0.5 kg | 0.5 kg |
| Travel Speed, Unloaded | Manual operation | 4.5 km/h | 4.5 km/h |
| Travel Speed, Fully Loaded | Manual operation | 4.0 km/h | 4.0 km/h |
| Battery | 7.4 V lithium battery | 48 V / 20 Ah lead-acid battery | 48 V / 20 Ah lead-acid battery |
| Controller | Not applicable | PG | PG |
| Drive Motor Power | Not applicable | 800 W | 800 W |
Product Features
Robotic Welding
Key frame components are manufactured using robotic welding for consistent weld quality and reliable structural strength.
Clean Weld Finish
Neat weld seams and carefully finished surfaces improve durability and give the pallet truck a professional appearance.
Galvanized Hydraulic Cylinder
The galvanized hydraulic cylinder offers improved resistance to moisture and corrosion and helps reduce the risk of oil leakage.
Four Load Cells
Four shear-beam load cells provide stable load detection and consistent weighing performance during daily pallet handling.
High-Visibility Display
The 48 mm high-brightness green LED display provides clear weight readings in warehouses and other brightly lit environments.
Space-Saving Packaging
Up to six units can be packed in one reinforced wooden case to improve container utilization and reduce shipping space.
Which Model Should You Choose?
Manual Model
Recommended for occasional weighing tasks, shorter travel distances and applications where purchase cost is the main consideration.
Semi-Electric Model
Recommended when pallets must be transported frequently, while manual hydraulic lifting remains suitable for the workload.
Fully Electric Model
Recommended for frequent handling, heavier daily workloads and operations requiring reduced manual effort.
