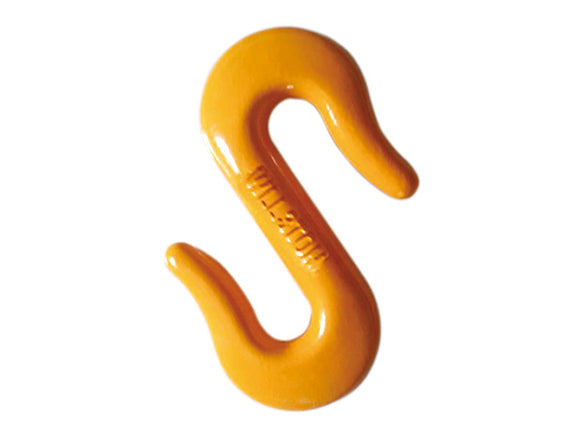

S-Shape Hook
| Item No. | Rated Load (T) |
Breaking Load (T) |

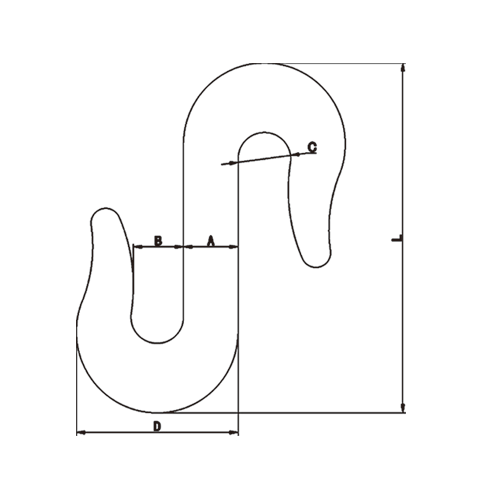

A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SL-H1047-1 | 1 | 4 | Ø26 | 23.8 | Ø25 | 77 | 166 | 1.2 |
| SL-H1047-2 | 2 | 8 | Ø28 | 26 | Ø28 | 84 | 175 | 1.5 |
| SL-H1047-3 | 3 | 12 | Ø30 | 30 | Ø32 | 90 | 188 | 1.8 |
| SL-H1047-5 | 5 | 15 | Ø38 | 38 | Ø44 | 120 | 238 | 3.5 |
| SL-H1047-8 | 8 | 32 | Ø50 | 55 | Ø60 | 160 | 305 | 7.7 |
| SL-H1047-10 | 10 | 40 | Ø53 | 70 | Ø75 | 181 | 361 | 11.6 |
