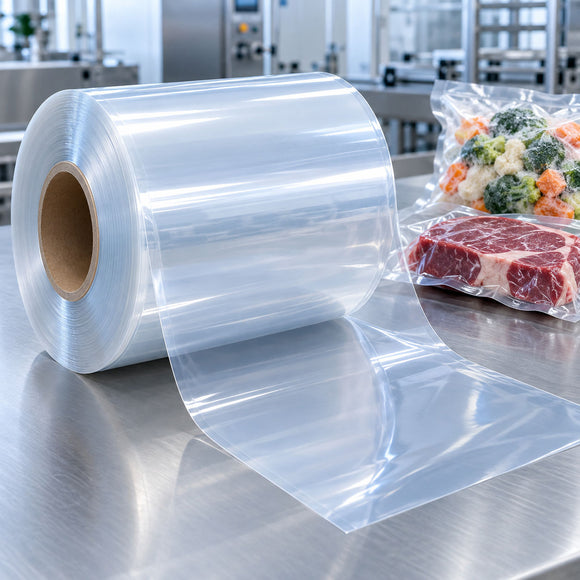

S-PA15C Transparent High-Barrier Film
A top-coated SiOx barrier film on a 15 μm PA substrate, suitable for demanding transparent food-packaging laminates.
Product Features
- Transparent, non-metallic high-barrier construction
- Strong water-vapor and oxygen barrier
- Good aroma retention
- Good flex and weather resistance
- Compatible with metal detection, RFID and microwave use
- Good printability and lamination processing
Applications
Vacuum Meat PacksHigh-barrier transparent laminates.
Pet FoodMoisture and oxygen protection.
Snack FoodsHelps retain aroma and freshness.
Frozen FoodFlexible cold-chain packaging.
Technical Specifications
| Item | Target | Typical Test Value |
|---|---|---|
| Thickness | 15 ± 1 μm | 15 μm |
| Tensile strength MD / TD | ≥180 / ≥180 MPa | 260 / 280 MPa |
| WVTR before cooking | <5 g/m²·day | 2.69 g/m²·day |
| OTR before cooking | <0.5 cc/m²·day | 0.13 cc/m²·day |
| Optical transmittance | ≥89% | 91% |
| Haze | <7% | 2.86% |
| Boiling resistance | 125°C, 45 min | Pass |
Specifications are reference values from the supplied product document. Confirm the final specification and processing conditions before ordering or production use.
