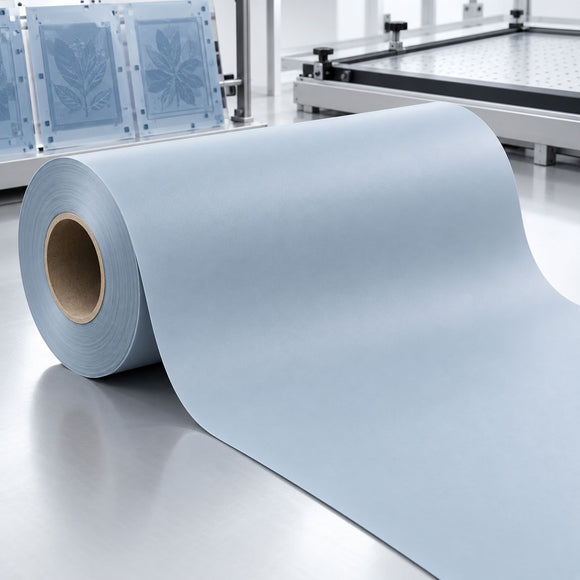

RL-M Matte Film
A high-sensitivity matte graphic-arts film for laser image output and imagesetting systems operating at 632.8-670 nm.
Product Features
- High contrast and resolution
- Low fog and high maximum density
- Sharp line and dot reproduction
- Wide exposure and processing latitude
- Matte emulsion surface supports fast vacuum drawdown and uniform air evacuation
Applications
Flexographic PlatesMatte surface is suited to vacuum contact work.
Laser ImagesettingCompatible with selected 632.8-670 nm systems.
Graphic ArtsFor sharp dots and high-quality image reproduction.
Technical Specifications
| Item | Specification |
|---|---|
| Common roll widths | 390, 406, 457, 508, 558, 610, 660, 813, 838, 914 mm |
| Roll length | 60 m |
| Developing temperature | 35°C |
| Developing time | 50 s |
| Storage | ≤20°C; RH ≤65% |
| Shelf life | 18 months |
Handling, Processing & Storage
Handle carefully to prevent damage from friction, folding, oil or fingerprints. Store in a cool, dry place away from direct sunlight, radiation and harmful substances.
Specifications are reference values from the supplied product document. Confirm the final specification and processing conditions before ordering or production use.
