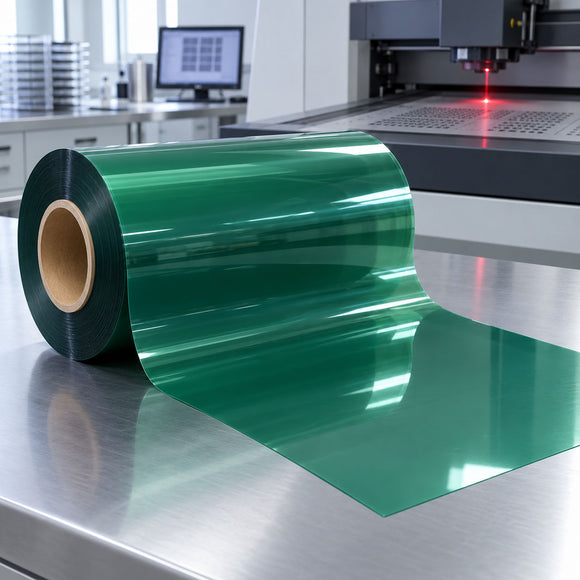

RL-100E Red Laser Recording Film
A high-speed red-laser recording film for HeNe 633 nm and RLD/RLED 630-680 nm image output systems.
Product Features
- High contrast and resolution
- Low fog and high maximum density
- Sharp line and dot reproduction
- Wide exposure and processing latitude
- High practical density, typically above 4.5
- Antistatic performance before and after processing
- High-quality stochastic-screen dot reproduction
Applications
Laser ImagesettingFor compatible HeNe and red-laser output equipment.
High-Resolution OutputFine dot and line reproduction.
Graphic PrepressWide exposure and developing tolerance.
Technical Specifications
| Item | Specification |
|---|---|
| Laser wavelength | 630-680 nm |
| Common roll widths | 390-914 mm; custom cutting available |
| Roll length | 60 m |
| Development | 30-32°C: 60-50 s; 34-35°C: 35-30 s |
| Safelight distance | At least 1.2 m |
| Storage | ≤23°C; RH ≤55% |
| Shelf life | 18 months |
| Standard | HG/T 2172-2003 |
Handling, Processing & Storage
Handle carefully to prevent damage from friction, folding, oil or fingerprints. Store in a cool, dry place away from direct sunlight, radiation and harmful substances.
Specifications are reference values from the supplied product document. Confirm the final specification and processing conditions before ordering or production use.
