RGV Casing Spacer for Pipe OD 1000mm~2000mm

RGV Casing Spacer

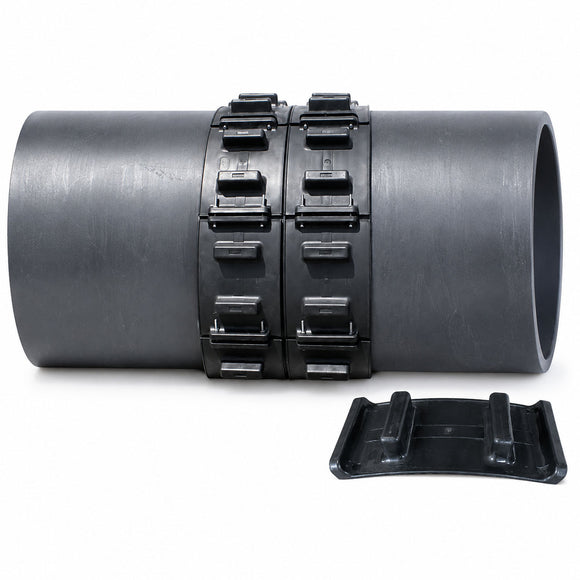

The RGV casing spacer is designed to support and center a carrier pipe with Diameeter 1000mm ~2000mm inside a larger casing pipe. Its modular segment construction allows the spacer ring to be assembled around the pipe, helping maintain the required clearance during installation and reducing direct contact between the carrier pipe and casing.

Applicable Pipe Diameter1000mm ~ 2000mm.
Stable Pipe SupportRaised support points help keep the carrier pipe centered and properly separated from the casing.
Application-Based SelectionSelect the required configuration according to the nominal casing size and carrier pipe outside diameter.
Pipe Crossing Site

RGV50 Segment Specifications

Model Support Height (mm) Support Width (mm) Number of Supports Bolt Size Fastener Quantity
RGV50 50.0 180.0 2 M8 × 60 2

RGV Casing Spacer Selection Chart

Nominal Casing Diameter (mm) Nominal Casing Diameter (in.) Carrier Pipe Outside Diameter (mm) Model & Component Quantity Fastening Bolts
Quantity × Size
Min. Max.
1000 40 1007 1075 10RGV 20 × M8 × 60
1056 1132 10RG + 1MA2 22 × M8 × 60
1108 1183 11RGV 22 × M8 × 60
1157 1239 11RG + 1MA2 24 × M8 × 60
1200 48 1209 1291 12RGV 24 × M8 × 60
1257 1346 12RG + 1MA2 26 × M8 × 60
1309 1398 13RGV 26 × M8 × 60
1358 1454 13RG + 1MA2 28 × M8 × 60
1400 56 1410 1506 14RGV 28 × M8 × 60
1458 1561 14RG + 1MA2 30 × M8 × 60
1510 1614 15RGV 30 × M8 × 60
1559 1670 15RG + 1MA2 32 × M8 × 60
1600 64 1611 1720 16RGV 32 × M8 × 60
1660 1777 16RG + 1MA2 34 × M8 × 60
1711 1829 17RGV 34 × M8 × 60
1760 1885 17RG + 1MA2 36 × M8 × 60
1800 72 1812 1936 18RGV 36 × M8 × 60
1861 1992 18RG + 1MA2 38 × M8 × 60
1913 2044 19RGV 38 × M8 × 60
1961 2100 19RG + 1MA2 40 × M8 × 60
2013 2156 19RG + 2MA2 42 × M8 × 60
2000 80 2013 2156 20RGV 40 × M8 × 60
2062 2207 20RG + 1MA2 42 × M8 × 60

Selection note: Confirm both the nominal casing diameter and the actual outside diameter of the carrier pipe before ordering. The spacer configuration and fastening-bolt quantity should match the applicable range shown in the chart.
