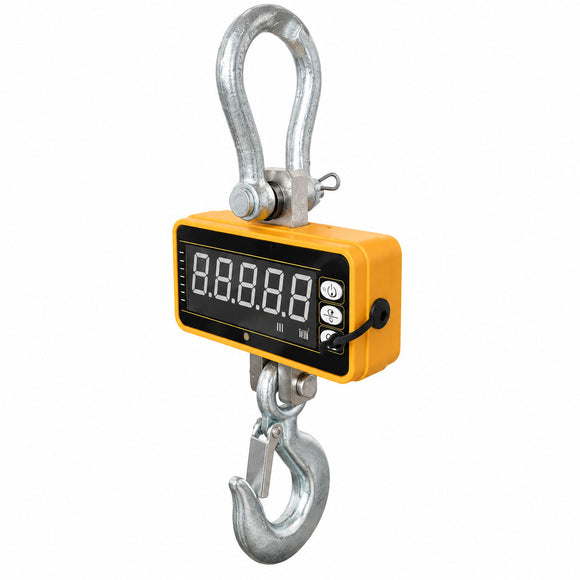

Portable Crane Scale 1T
Technical Specifications
| Accuracy Class | Class III, GB/T 11883-2002 |
|---|---|
| Operating Time per Charge | Approximately 60 hours |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 300% F.S. |
| Operating Temperature | -25°C to +50°C |
| Relative Humidity | ≤90% RH |
| Display | 1.2-inch LED display |
| Stabilization Time | <5 seconds |
| Remote-Control Range | 10–15 m |
Model and Parameters
| Capacity | Division | Minimum Load | Overload Coefficient | Display | Battery | Remote Control | Charger | Housing |
|---|---|---|---|---|---|---|---|---|
| 1 t | 0.5 kg | 10 kg | 3d | 1-inch red and green dual-color display | Three No. 5 rechargeable batteries or dry-cell batteries | Infrared | 5 V | Hardened nylon |
Dimensions
| Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| 1 t | 305 mm | 70 mm | 26 mm | 145 mm | 70 mm |
Optional Accessories
Accessory Image 01
Handheld Printer
Accessory Image 02
Desktop Printing Indicator
Accessory Image 03
Large Remote Display
Accessory Image 04
Handheld Display
Accessory Image 05
Bluetooth Module
