LYFOOCRANE PORTABLE ALUMINUM GANTRY SYSTEMS

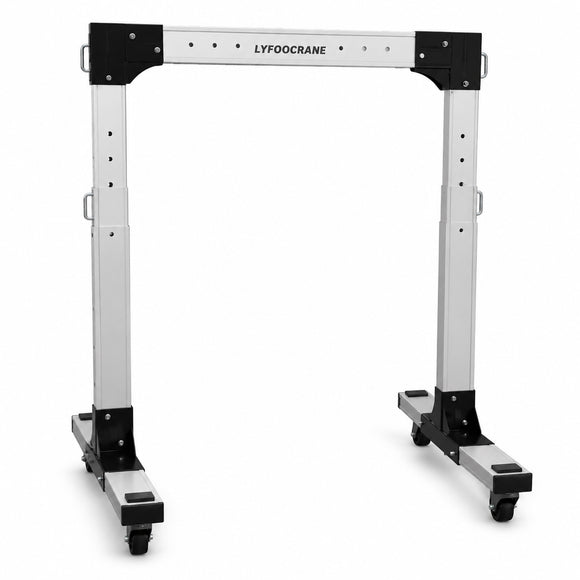

Portable Adjustable Aluminum Gantry Crane, 500–2,000 kg
A lightweight, modular lifting frame for maintenance, installation and material-handling work where a permanent overhead crane is unavailable or impractical.
One Modular Platform, Multiple Configurations
Built around a corrosion-resistant 6005-T6 aluminum structure, this portable gantry series combines adjustable height, selectable beam spans and compact knock-down construction. Choose a configuration to suit the load, available headroom, access route and floor conditions.
Telescopic Configuration
Telescoping uprights and an adjustable beam provide a flexible working envelope for changing maintenance locations and restricted-access areas.
Knock-Down Gantry Kit
Quick-insert pins, modular components and integrated handling points simplify storage, transport and repeatable on-site assembly.
Mobile Maintenance Frame
Swivel casters support convenient unloaded repositioning across smooth, level workshop floors. Locking hardware secures the frame before lifting.
Key Product Features
Multiple pinned positions accommodate different clear spans and lifting heights.
High-strength aluminum construction is easier to handle than comparable steel frames.
Detachable components reduce the space required for storage and site delivery.
Configure the beam for a suitable manual or electric hoist and matched trolley.
Reference Configurations
Final capacity depends on the approved combination of beam span, lifting height, base and structural configuration.
| Rated Capacity | External Width | Clear Width | External Height | Clear Height | Base Width |
|---|---|---|---|---|---|
| 500 kg | 1,630–2,280 mm | 1,350–2,000 mm | 1,500–2,900 mm | 1,350–2,750 mm | 1,200 mm |
| 500 kg | 2,780–4,280 mm | 2,500–4,000 mm | 2,650–4,150 mm | 2,500–4,000 mm | 1,600 mm |
| 1,000 kg | 1,630–2,280 mm | 1,350–2,000 mm | 1,500–2,900 mm | 1,350–2,750 mm | 1,200 mm |
| 1,000 kg | 2,780–4,280 mm | 2,500–4,000 mm | 2,650–4,150 mm | 2,500–4,000 mm | 1,600 mm |
| 2,000 kg | Custom engineered | Custom engineered | Up to 4,150 mm* | Up to 4,000 mm* | Configuration dependent |
*Reference maximum only. The 2,000 kg version requires a model-specific drawing, rating plate and structural approval.
Product Details and Dimensional References
Typical Applications
Safe Configuration and Operation
- Confirm the rated capacity for the selected span, height and hoist position before use.
- Make all height and width adjustments with the frame unloaded, then fully engage and secure every locking pin.
- Use the gantry only on a firm surface with adequate bearing capacity. Soft or uneven ground requires an engineered support arrangement.
- Lock the casters before lifting. Do not move the gantry with a suspended load unless the supplied model is specifically engineered and approved for loaded travel.
- Use compatible, correctly rated hoists, trolleys and rigging. Never lift personnel or use the frame as a fall-arrest anchor.
Configure Your LYFOOCRANE Portable Gantry
Send us the load weight, required clear span, under-beam height, floor conditions, hoist type, mobility requirement and available setup space. We will match the frame and lifting components to your application.
