LYFOOCRANE Column-Mounted Jib Crane
A compact and reliable lifting solution for frequent, short-distance material handling in workshops, warehouses, production areas, loading zones, and other industrial environments.
Product Overview

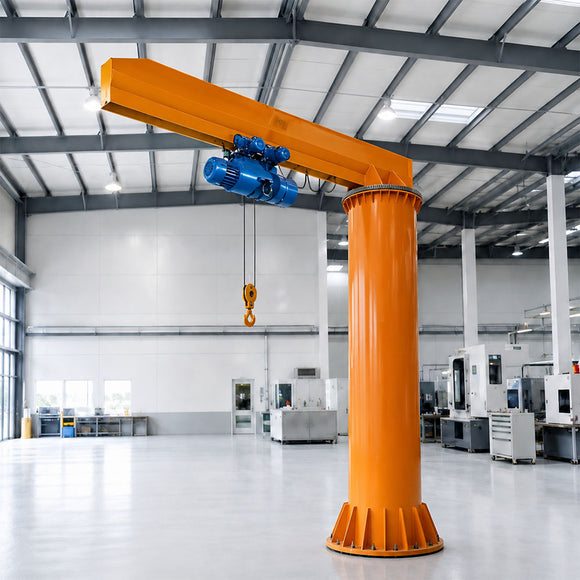

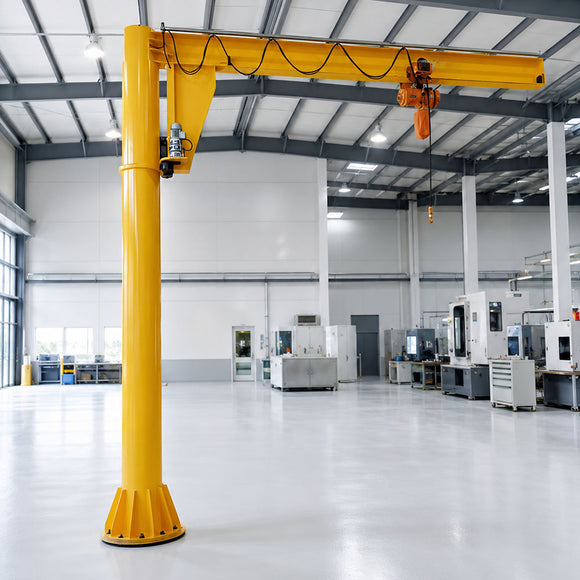

The LYFOOCRANE column-mounted jib crane combines a floor-mounted steel pillar, rotating jib arm, slewing drive, and electric hoist in one space-saving lifting system. The pillar is secured to a suitable concrete foundation with anchor bolts, while the hoist travels along the jib to position loads smoothly within the working radius.
Its low-profile steel structure helps maximize available lifting height. Depending on the selected configuration, the crane can be operated by pendant control, remote control, or both. Electric chain hoists, wire-rope hoists, and compact hoists can be specified to match the application.
Key Benefits
- Efficient local handling: ideal for repetitive lifting and short-distance load positioning.
- Space-saving installation: the freestanding column requires no wall support and can be placed close to a workstation.
- Durable steel construction: designed for dependable performance in industrial environments.
- Flexible configuration: capacity, arm length, lifting height, rotation range, hoist type, speed, and controls can be selected for the application.
- Simple operation: smooth slewing and straightforward hoist travel support efficient material flow.
Main Components
Reference Technical Data
| Parameter | Unit | Reference Specification |
|---|---|---|
| Model | — | BZ / BZD or customized equivalent |
| Rated capacity | t | 0.25, 0.5, 2, 5, 10, 13, 16, or 20 |
| Arm length | m | Up to 18 |
| Hoisting height | m | 3, 6, 9, 12, or 20 |
| Hoisting speed | m/min | Hoist-dependent; single- or dual-speed options |
| Trolley travel speed | m/min | 20 or 30 |
| Slewing speed | r/min | Approx. 0.5 |
| Slewing range | degrees | 180°, 270°, or up to 360°, depending on configuration |
| Power supply | — | AC 220–690 V, 50/60 Hz |
Specifications are reference values and may vary with capacity, working radius, hoist selection, duty class, local power supply, and project requirements. Final dimensions and performance should be confirmed before ordering.
Safety Options
- Overload limiter
- Rubber buffers
- Electrical protection
- Emergency stop
- Undervoltage protection
- Overcurrent protection
- Travel or rail anchoring where applicable
- Upper lifting limit device
Common Applications

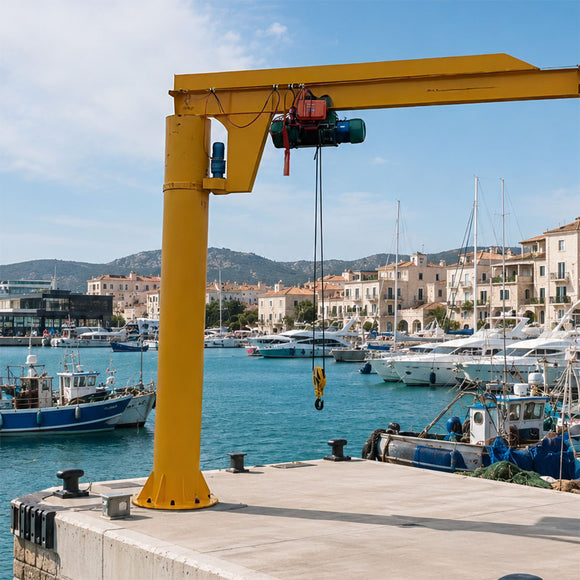

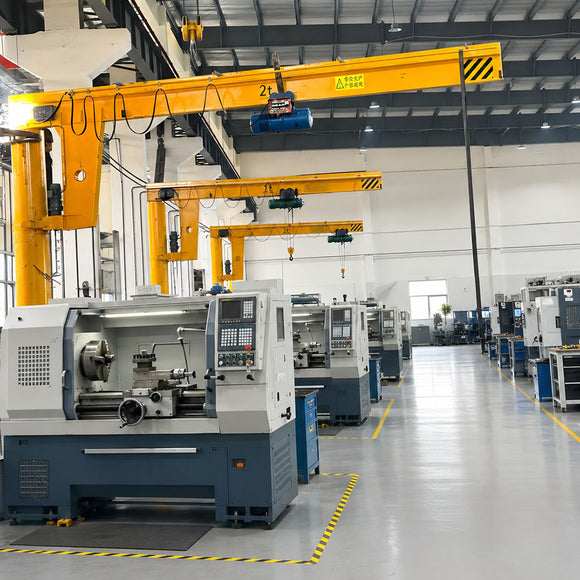

Workshops, assembly stations, manufacturing plants, warehouses, storage areas, loading zones, maintenance bays, ports, yards, and other locations that require localized lifting coverage.
Configure Your LYFOOCRANE Jib Crane
For an accurate recommendation, provide the required capacity, arm length, lifting height, slewing range, duty cycle, installation conditions, and local power supply.
