PORTABLE MATERIAL HANDLING SOLUTION
Truck-Mounted Mini Jib Crane
Compact 12V/24V electric lifting equipment designed for loading and unloading pickup trucks, service vehicles, trailers, farms, workshops and warehouses.
Compact Power for Everyday Loading
This portable pickup jib crane provides a practical way to lift machinery, tools, generators, drums, building materials and other heavy items into or out of a vehicle. Selected models connect directly to the vehicle battery, eliminating the need for a separate power source. The adjustable boom, compact mounting base and manual 360° rotation help the operator position loads efficiently in confined working areas.
Vehicle-Battery Power
12V or 24V configurations are available for convenient connection to compatible vehicle electrical systems.
Flexible Load Positioning
Manual 360° rotation, an adjustable boom angle and extendable reach improve access around the truck bed.
Compact & Portable
The space-saving structure is easy to mount and suitable for mobile loading tasks where a full-size crane is impractical.

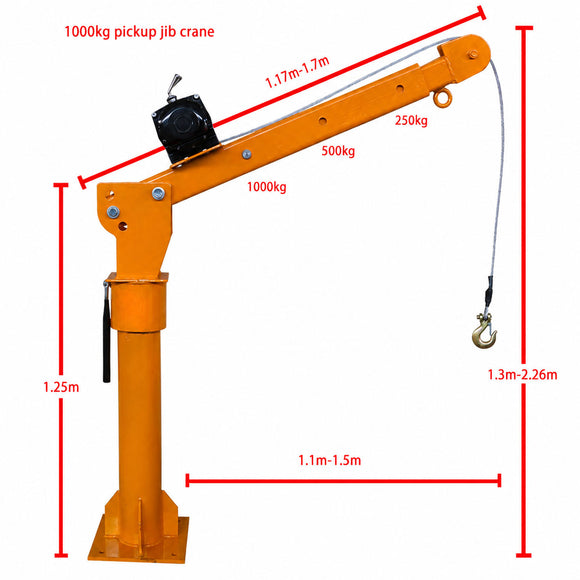

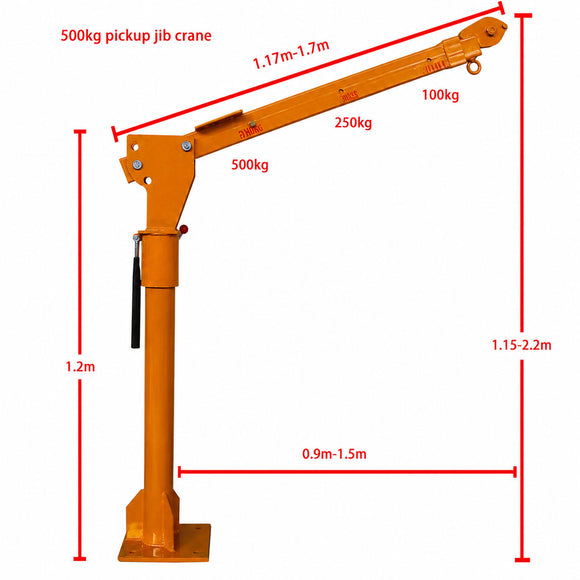

Choose the Right Configuration
| Configuration | Light-Duty Series | Heavy-Duty Series (HP1000) |
|---|---|---|
| Rated Capacity | 100–500 kg, depending on model | 500 kg single line / 800 kg double line |
| Power Supply | 12V / 24V DC | 12V DC, 125 A; other voltages available by configuration |
| Rotation | 360° manual rotation | 360° manual continuous rotation with brake |
| Maximum Reach | Up to 1.94 m boom extension* | 1490 mm from rotation center |
| Lifting Arrangement | Electric wire-rope lifting | Single-line or double-line lifting |
| Finish | Protective coated steel structure | Powder-coated steel structure |
Heavy-Duty Model Technical Data
| Maximum single-line capacity | 500 kg |
| Maximum double-line capacity | 800 kg |
| Maximum standard height (base to hook) | 1940 mm |
| Maximum reach (from rotation center) | 1490 mm |
| No-load line speed | 3.6 m/min (single line) |
| Single-line wire rope | Ø4.8 mm × 4.5 m, 1 pc |
| Double-line wire rope | Ø4.8 mm × 5.5 m, 1 pc |
| Switch cable | 4.2 m |
| Mounting base | 250 × 250 × 18 mm |
| Mounting bolt-hole pattern | 170 × 170 mm |
| Certification | CE |
Typical Applications
- Pickup trucks and service vehicles
- Farms, landscaping and field maintenance
- Workshops, warehouses and small factories
- Loading generators, pumps, tools and equipment
- Handling drums, machinery parts and building materials
Key Advantages
- Electric lifting reduces manual handling effort
- Adjustable boom suits different load positions
- Compact mounting footprint saves truck-bed space
- Simple controls support efficient operation
- Custom configurations are available for project needs
Before Ordering
Please confirm the required lifting capacity, single-line or double-line operation, vehicle voltage, mounting position, available installation space and desired boom reach. The mounting structure of the vehicle must be evaluated and reinforced where necessary by a qualified installer.
Safety note: Capacity and reach vary by model and boom position. Never exceed the rated load shown for the selected configuration. Secure the crane to a structurally suitable mounting surface, keep personnel clear of suspended loads and follow the supplied installation and operating instructions. *Dimensions and specifications are subject to final model confirmation.
