Patient Transfer System
Overhead Track Patient Lift

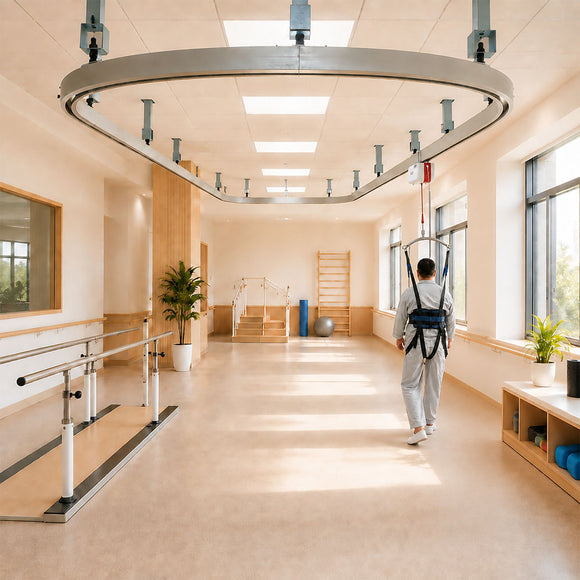

A ceiling-mounted lifting and transfer system designed to assist caregivers with safe, smooth patient movement in hospitals, rehabilitation centers, nursing facilities and accessible homes.
Comfortable, Controlled Patient Transfers
The system combines a lifting unit, trolley, ceiling track and supportive sling to raise or lower a patient and move them along a planned route. It can help reduce strenuous manual handling during transfers between a bed, wheelchair, bathroom or rehabilitation area.
Suitable for everyday assisted-transfer applications.
Designed for controlled lifting and improved user comfort.
Radio remote control supports convenient caregiver operation.
Upper/lower limit protection and emergency stop.

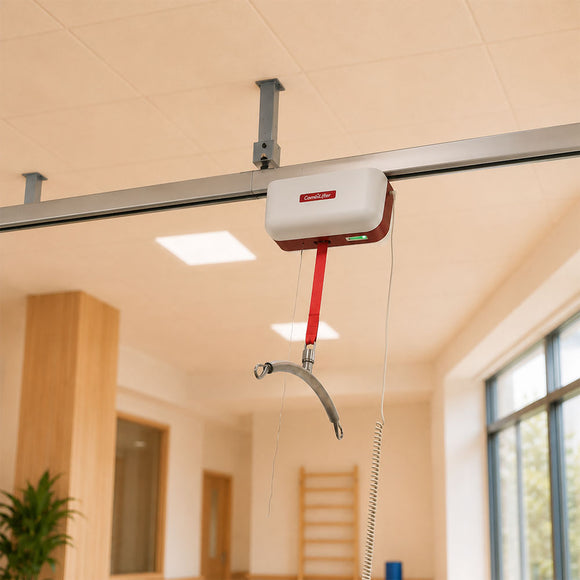

Battery-Powered Lift Unit
The battery-powered unit integrates the transmission, hoisting and guide mechanisms with a lithium battery, trolley, housing, safety limit switches and patient sling. The trolley allows the lift to travel along the ceiling track after the patient has been raised to the required level.
| Item | Parameter |
|---|---|
| Hoisting Speed | 65 mm/s |
| Rated Capacity | 150 kg |
| Lifting Stroke | 1.6 m |
| Standby / Continuous Lifts | Up to 20 days / approx. 300 cycles |
| Control | Radio remote; soft start/stop |
| Safety Protection | Upper/lower limit switches; emergency stop |

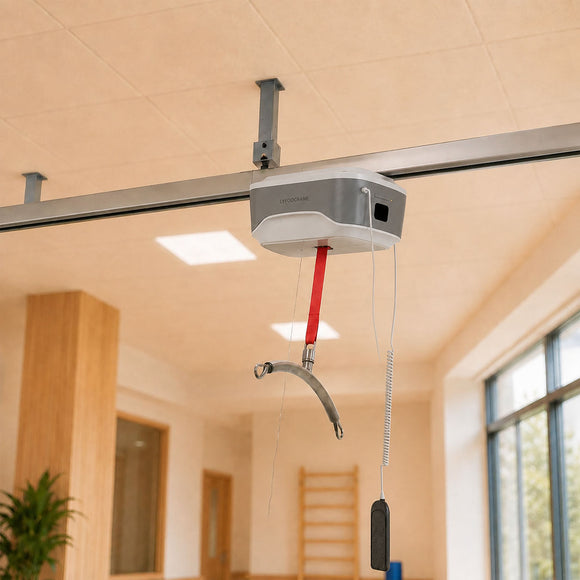

Plug-In Lift Unit
The plug-in version includes the lifting mechanism, trolley, housing, safety limit switches and patient sling. Powered by a 220V AC supply, it travels along the installed track within a room or designated care area.
| Item | Parameter |
|---|---|
| Hoisting Speed | 65 mm/s |
| Rated Capacity | 150 kg |
| Lifting Stroke | 1.6 m |
| Power Supply | 220V AC |
| Control | Radio remote; soft start/stop |
| Safety Protection | Upper/lower limit switches; emergency stop |
Turning Disk for Multi-Direction Tracks
The turning disk connects T-shaped or cross-shaped track sections and changes the lift travel direction by 90° clockwise or counterclockwise. Its transmission, positioning and control components work together for accurate alignment, while integrated sensors support intelligent operation.
| Item | Parameter |
|---|---|
| Rotation Speed | 5 rpm |
| Power Supply | AC 220V, 50Hz |
| Protection | Mechanical protection and limit switch |
| Control | Radio remote |
| Rated Capacity | 150 kg |
Track Switch Device
The track switch device uses transmission, positioning and control modules to route the lift between connected track sections.
| Item | Parameter |
|---|---|
| Switching Time | 3–4 seconds |
| Power Supply | AC 220V, 50Hz |
| Protection | Mechanical protection and limit switch |
| Control | Radio remote |
| Rated Capacity | 150 kg |
Typical Applications
- Hospitals and medical care facilities
- Rehabilitation and physiotherapy centers
- Nursing homes and assisted-living facilities
- Accessible bedrooms and bathrooms
- Customized room-to-room patient transfer routes
Customization Available

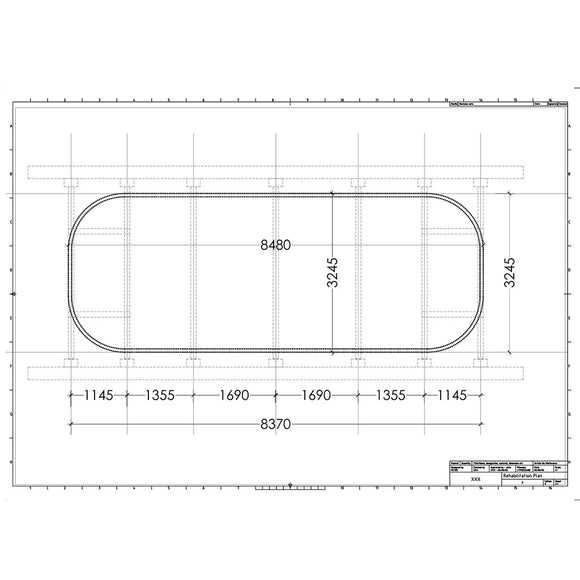

Track layout, route configuration and system components can be selected according to the room dimensions and transfer requirements. Please provide the installation drawing, ceiling conditions, required travel route, lifting capacity and local power supply when requesting a quotation.
Note: Product configuration and technical data may vary by project. Final specifications should be confirmed before ordering. Installation and use should follow the supplied technical instructions and applicable local requirements.
