Omni-Directional Machinery Movers
Low-profile machinery movers engineered for precise 360° positioning of heavy equipment in narrow aisles, workshops and confined industrial spaces.
IMAGE 01 — PRODUCT
Precision Movement in Any Direction
The omni-directional wheel arrangement allows the load to move forward, backward, sideways and diagonally without repeatedly repositioning the skate. A reinforced steel platform and polyurethane rollers combine load support with smooth, controlled maneuvering.
Ideal where turning radius is limited or equipment must be aligned accurately during installation.
Product Advantages
True 360° Mobility
Move and reposition loads in any horizontal direction.
Move and reposition loads in any horizontal direction.
Low-Profile Stability
Keeps the load close to the floor for improved balance.
Keeps the load close to the floor for improved balance.
Industrial Construction
Heavy-duty steel body for repeated workshop use.
Heavy-duty steel body for repeated workshop use.
Models and Specifications
| Model | Load Capacity | Wheels | Wheel Material | Dimensions (L × W × H) | Movement |
|---|---|---|---|---|---|

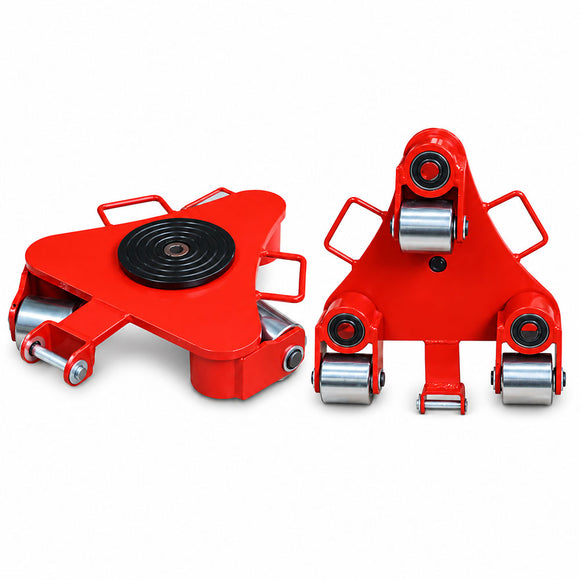

| CRO-2 | 4,400 lb / 2 t | 3 | Polyurethane | 16.93 × 14.17 × 4.33 in | Multi-directional |

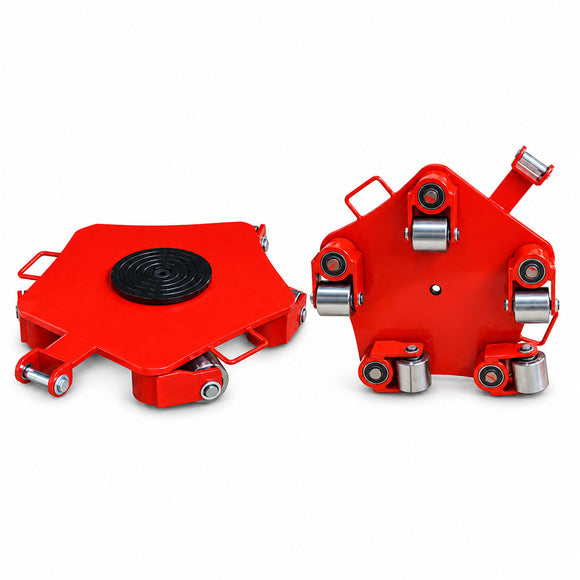

| CRO-4 | 8,800 lb / 4 t | 5 | Polyurethane | 23.23 × 21.26 × 4.33 in | Omni-directional |
Applications
IMAGE 02
Machine installation
IMAGE 03
Confined-space positioning
IMAGE 04
Plant maintenance
Safety: Center and secure the load, keep personnel clear of the travel path and use several movers only when the weight can be distributed evenly. Do not operate supported machinery while it is on the movers.
